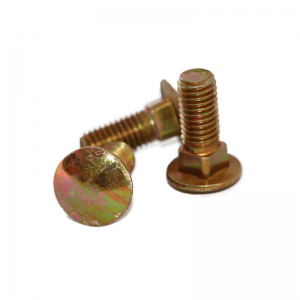

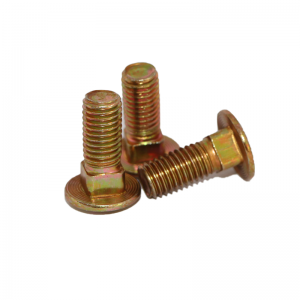

High Strength Grade 4.8 8.8 10.9 12.9 Yellow Zinc Plated DIN 603 Carriage Bolts

Name: High Strength Grade 4.8 8.8 10.9 12.9 Yellow Zinc Plated DIN 603 Carriage Bolts
Brand: YONGYI

Moq: Confirmed by product, size, grade, finish and quantity

Price: Quoted to specification, quantity, coating, packing and Incoterm

Package: Bags, boxes, cartons, pallets or customer-specified export packing

Export port: Tianjin, Qingdao or Shanghai, as confirmed in the quotation

Delivery date: Confirmed after specification, quantity and production review

Payment method: T/T or other terms stated in the official PI or contract

Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN580 Eye Bols

MOQ: Contact us

Price: Contact us
High Strength Grade j-Bolts Anchor Bolts Embedded fixing bolts

MOQ: Contact us

Price: Contact us
High Strength Grade 4.8 8.8 10.9 12.9 Black Oxide DIN914 set bolt

MOQ: Contact us

Price: Contact us
High Strength Grade 4.8 8.8 10.9 12.9 Steel Color Yellow Zinc Plated DIN580 Eye Bolts

MOQ: Contact us

Price: Contact us
Stainless Steel SS201 SS304 SS316 A2-70 A4-80 DIN7991 CSK Flat Head Hex Socket Bolts

MOQ: Contact us

Price: Contact us
Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN316 Butterfly Wing Bolts

MOQ: Contact us

Price: Contact us

Product Photos and Information

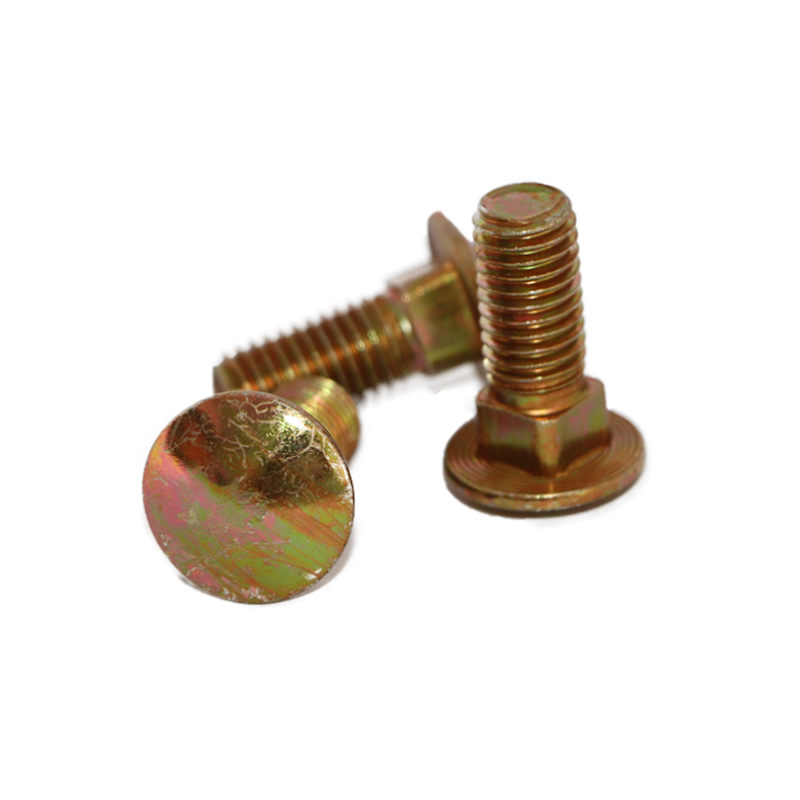

High Strength Grade 4.8 8.8 10.9 12.9 Yellow Zinc Plated DIN603 Carriage ( (3)

Name	Carriage Bolts
Standards	DIN ISO ANC BSW JIS etc.
Size	M3-M50
Length	15-500
Materials	Carbon Steel/Stainless Steel
Strength level	4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80
Surface finish	ZPHDGBLACKDacromet etc.
Samples	Subject to availability and agreement

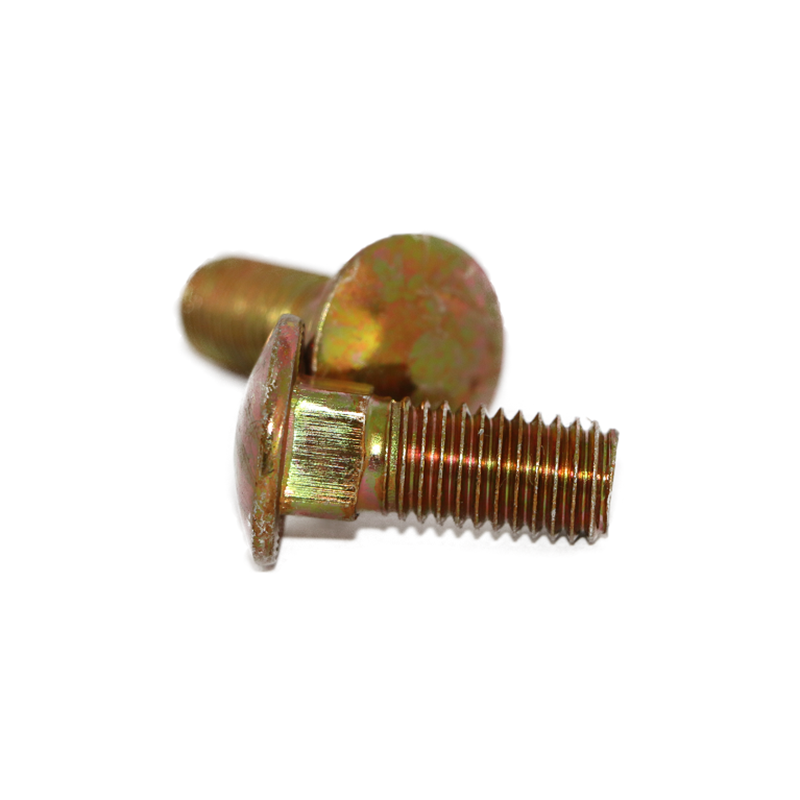

High Strength Grade 4.8 8.8 10.9 12.9 Yellow Zinc Plated DIN603 Carriage ( (4)

High Strength Grade 4.8 8.8 10.9 12.9 Yellow Zinc Plated DIN603 Carriage (

Product Standards

Large round head square neck bolts DIN 603
Thread specification		M5	M6	M8	M10	M12	M16	M20
d		M5	M6	M8	M10	M12	M16	M20
P	pitch	0.8	1	1.25	1.5	1.75	2	2.5
b	L≤125	16	18	twenty two	26	30	38	46
	125＜L≤200	twenty two	twenty four	28	32	36	44	52
	L>200	-	-	41	45	49	57	65
dk	maximum value	13.55	16.55	20.65	24.65	30.65	38.8	46.8
dk	minimum	12.45	15.45	19.35	23.35	29.35	37.2	45.2
ds	maximum value	5	6	8	10	12	16	20
ds	minimum	4.52	5.52	7.42	9.42	11.3	15.3	19.16
k 1	maximum value	4.1	4.6	5.6	6.6	8.75	12.9	15.9
k 1	minimum	2.9	3.4	4.4	5.4	7.25	11.1	14.1
k	maximum value	3.3	3.88	4.88	5.38	6.95	8.95	11.05
k	minimum	2.7	3.12	4.12	4.62	6.05	8.05	9.95
r 1	≈	10.7	12.6	16	19.2	24.1	29.3	33.9
r 2	maximum value	0.5	0.5	0.5	0.5	1	1	1
r 3	maximum value	0.75	0.9	1.2	1.5	1.8	2.4	3
s	maximum value	5.48	6.48	8.58	10.58	12.7	16.7	20.84
s	minimum	4.52	5.52	7.42	9.42	11.3	15.3	19.16
Thousand pieces of steel weight ≈kg		-	-	-	-	-	-	-
thread length b		-	-	-	-	-	-	-

About Us

YONGYI Fasteners supports industrial and project fastener inquiries from Yongnian, Handan, China.

Our published company certificates, factory photographs, production information and selected supply references help buyers evaluate manufacturing and quality-control capabilities.

For a quotation, provide the product standard or drawing, size, material or grade, surface finish, quantity, packing requirement and destination.
