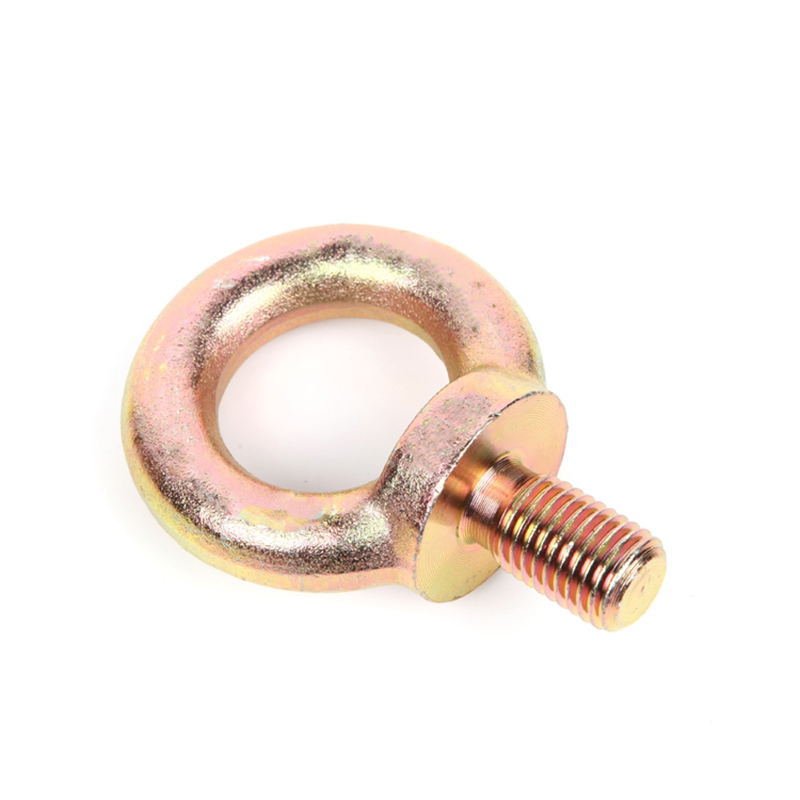

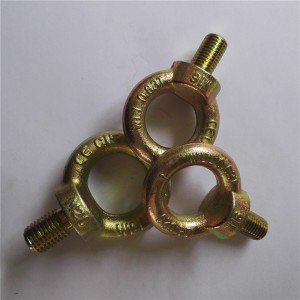

High Strength Grade 4.8 8.8 10.9 12.9 Steel Color Yellow Zinc Plated DIN 580 Eye Bolts


  • Moq: Confirmed by product, size, grade, finish and quantity
  • Price: Quoted to specification, quantity, coating, packing and Incoterm
  • Package: Bags, boxes, cartons, pallets or customer-specified export packing
  • Export port: Tianjin, Qingdao or Shanghai, as confirmed in the quotation
  • Delivery date: Confirmed after specification, quantity and production review
  • Payment method: T/T or other terms stated in the official PI or contract
    • Download All Products List

    Product Photos and Information

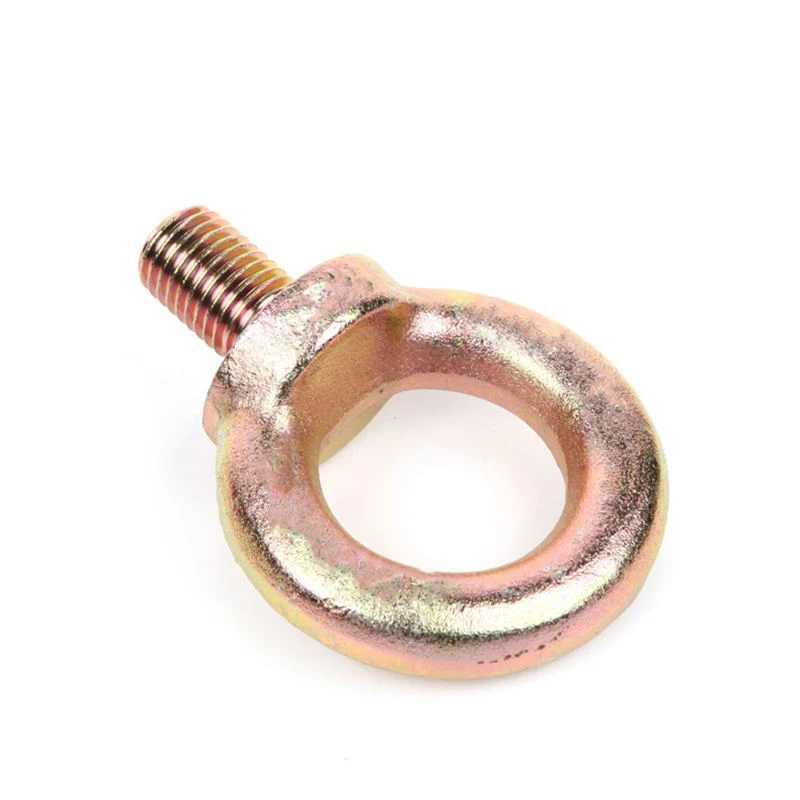

    High Strength Grade 4.8 8.8 10.9 12.9 Steel Color Yellow Zinc Plated D (
    Name Eye bolts
    Standards DIN ISO ANC BSW JIS etc.
    Size M3-M50
    Length 15-500
    Materials Carbon Steel/Stainless Steel
    Strength level 4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80
    Surface finish ZPHDGBLACKDacromet etc.
    Samples Subject to availability and agreement

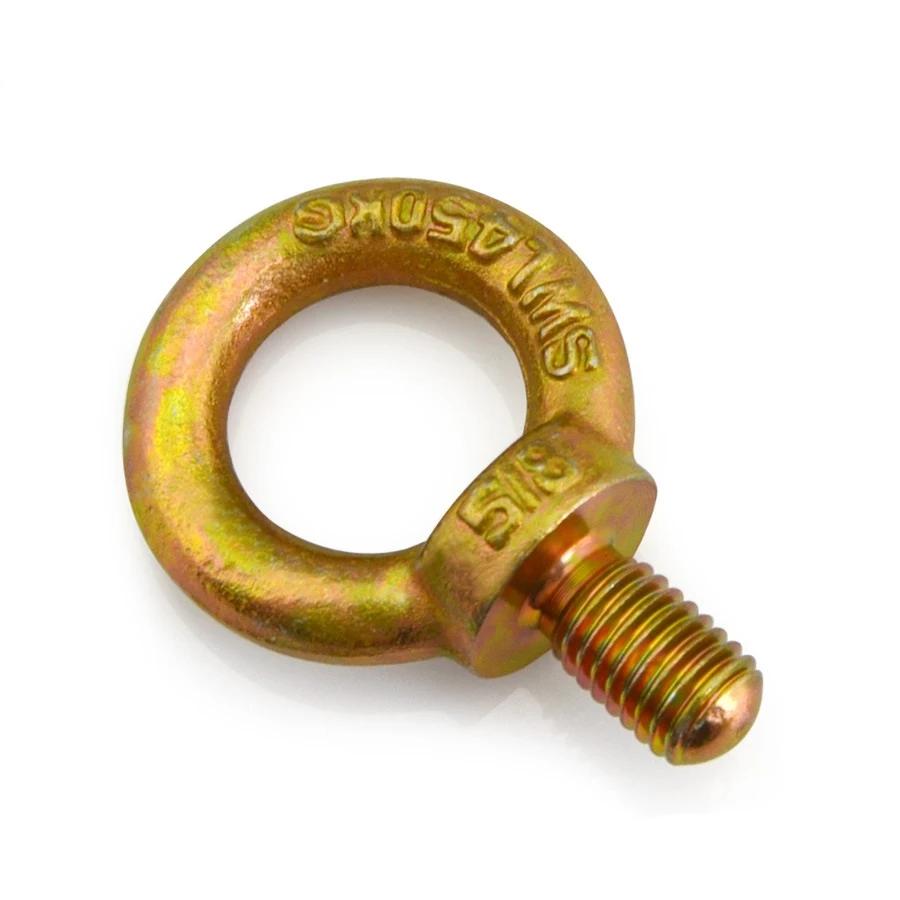

    High Strength Grade 4.8 8.8 10.9 12.9 Steel Color Yellow Zinc Plated D ( (7)

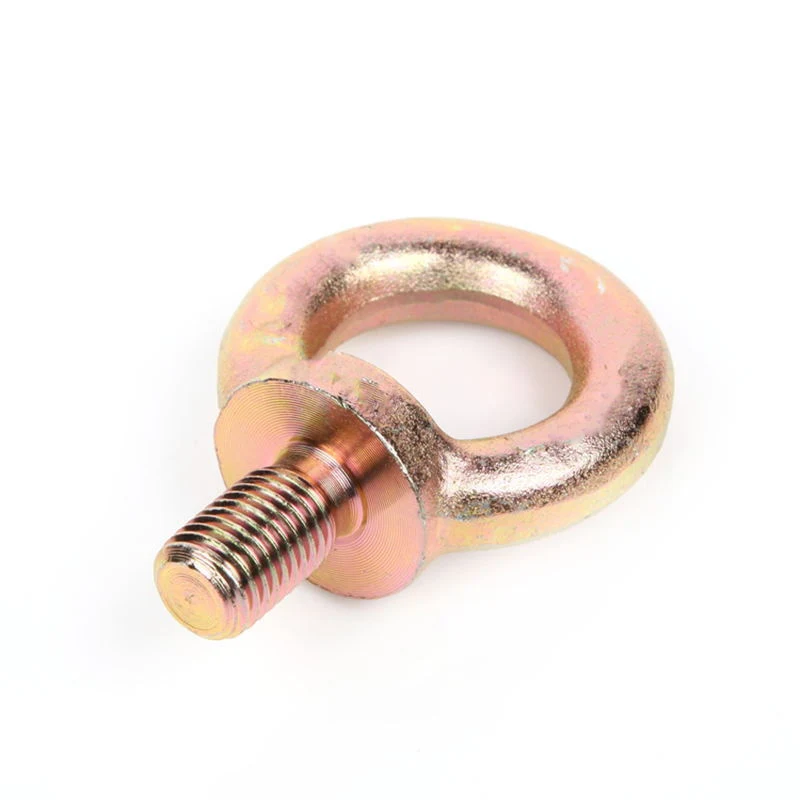

    High Strength Grade 4.8 8.8 10.9 12.9 Steel Color Yellow Zinc Plated D ( (6)

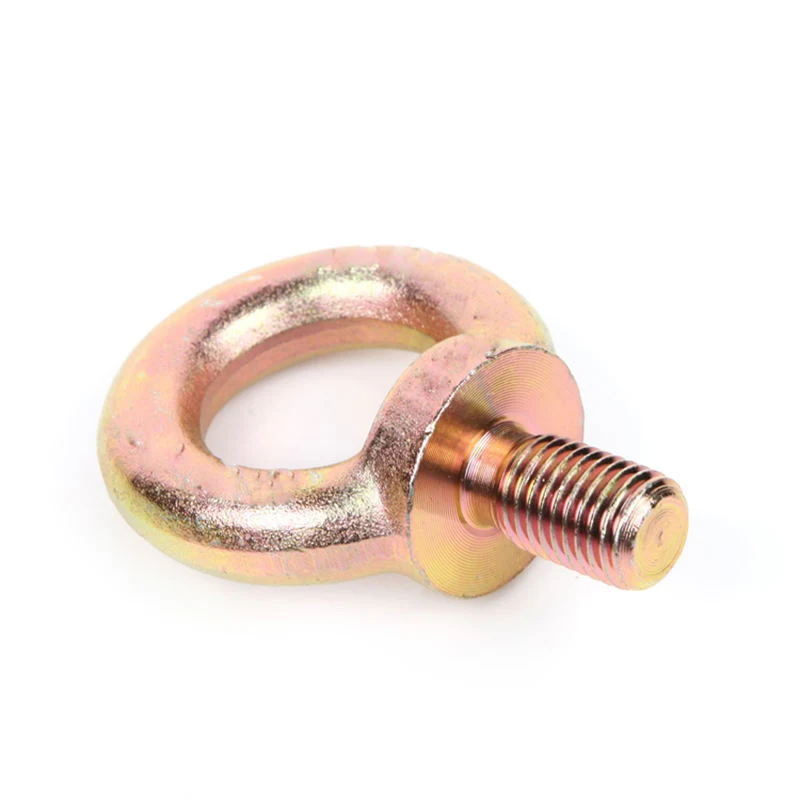

    High Strength Grade 4.8 8.8 10.9 12.9 Steel Color Yellow Zinc Plated D ( (5)

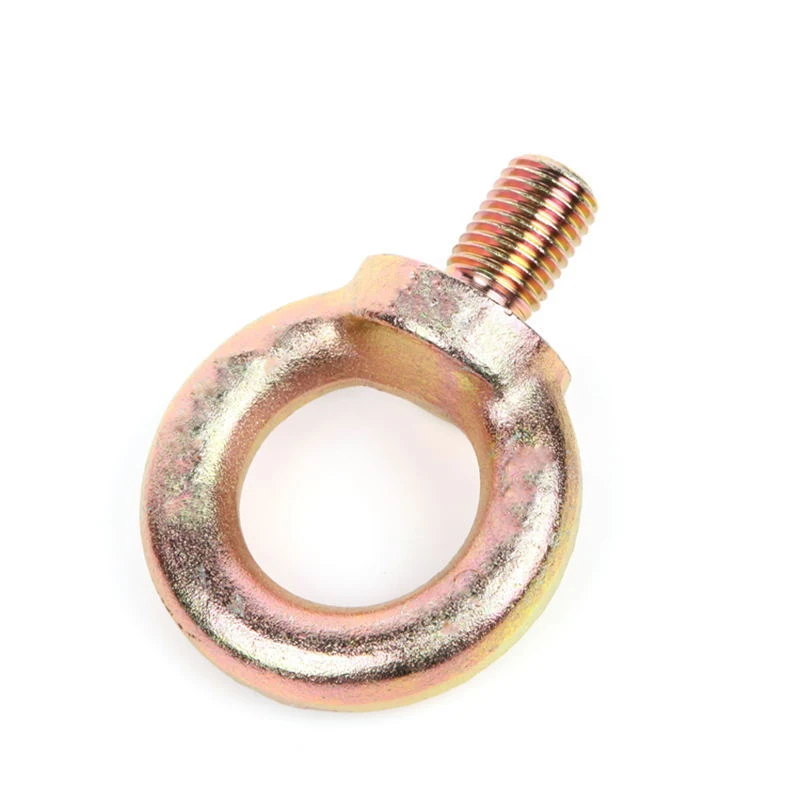

    High Strength Grade 4.8 8.8 10.9 12.9 Steel Color Yellow Zinc Plated D ( (4)

    Product Standards

    detail13
    Eyebolts DIN 580
    Thread specification M8 M10 M12 M16 M20 M24 M30 M36 M42 M48 M56 M64 M72×6 M80×6 M100×6
    d
    d 2 Nominal 20 25 30 35 40 50 65 75 85 100 110 120 150 170 190
    minimum 19.5 24.5 29.5 34.5 39.3 49.3 64.3 74.3 84.2 99.1 108.9 118.8 148.7 168.5 188.5
    maximum value 21.1 26.1 31.1 36.2 41.3 51.3 66.3 76.5 86.7 101.9 112.1 122.4 152.7 173 193
    d 3 Nominal 36 45 54 63 72 90 108 126 144 166 184 206 260 296 330
    minimum 35.4 44.4 53.4 62.4 71.3 89.3 107.3 125.2 143.1 164.8 182.8 204.7 258.3 294.3 328.3
    maximum value 37.2 46.2 55.2 64.2 73.3 91.3 109.5 127.7 145.9 168.4 186.4 208.7 263.3 299.3 333.3
    d 4 Nominal 20 25 30 35 40 50 60 70 80 90 100 110 140 160 180
    minimum 18.9 23.9 28.9 33.8 38.7 48.7 58.7 68.5 78.3 88.1 98.1 107.6 137.3 157.3 177
    maximum value 20.5 25.5 30.5 35.6 40.7 50.7 60.7 70.7 80.8 90.9 100.9 111.2 141.3 161.3 181.5
    and Nominal 6 8 10 12 14 18 twenty two 26 30 35 38 42 50 55 60
    minimum 5.5 7.5 9.5 11.5 13.4 17.4 21.4 25.3 29.3 34.1 37.1 40.9 48.8 53.8 58.8
    maximum value 7.1 9.1 11.1 13.1 15.2 19.2 23.2 27.3 31.5 36.9 39.9 44.1 52.4 57.4 62.4
    f maximum value 2.5 3 3.5 4 5 6 7 8 9 10 11 12 12 12 12
    ds max = nominal 6 7.7 9.4 13 16.4 19.6 25 30.3 35.6 41 48.3 55.7 63.7 71.7 91.7
    minimum 5.82 7.48 9.18 12.73 16.13 19.27 24.67 29.91 35.21 40.61 47.91 55.24 63.24 71.24 91.16
    h Nominal 36 45 53 62 71 90 109 128 147 168 187 208 260 298 330
    minimum 35.4 44.4 52.4 61.4 70.3 89.3 108.3 127.2 146.1 166.8 185.8 206.7 258.3 296.3 328.3
    maximum value 37.2 46.2 54.2 63.2 72.3 91.3 110.5 129.7 148.9 168.4 189.4 210.7 263.3 301.3 333.3
    k Nominal 8 10 12 14 16 20 twenty four 28 32 38 42 48 60 68 75
    minimum 7.5 9.5 11.5 13.5 15.4 19.4 23.4 27.3 31.3 37.1 41.1 46.9 58.8 66.8 73.8
    maximum value 9.1 11.1 13.1 15.1 17.2 21.2 25.2 29.3 33.5 39.9 43.9 50.1 62.4 70.4 77.4
    L Nominal 13 17 20.5 27 30 36 45 54 63 68 78 90 100 112 130
    minimum 12.71 16.71 20.15 26.65 29.58 35.5 44.5 53.5 62.5 67.5 77.4 89.4 99.4 111.3 129.2
    maximum value 13.29 17.29 20.85 27.35 30.42 36.5 45.5 54.5 63.5 68.5 78.6 90.6 100.6 112.7 130.7
    m Nominal 10 12 14 16 19 twenty four 28 32 38 46 50 58 72 80 88
    minimum 9.5 11.5 13.5 15.5 18.4 23.4 27.4 31.3 37.2 45.1 49.1 56.9 70.8 78.8 86.8
    maximum value 11.1 13.1 15.1 17.1 20.2 25.2 29.2 33.3 39.5 47.9 51.9 60.1 74.4 82.4 90.4
    Single weight (steel)≈kg 0.06 0.11 0.18 0.28 0.45 0.74 1.66 2.65 4.03 6.38 8.8 12.4 23.3 34.2 49.1

    About Us

    YONGYI Fasteners supports industrial and project fastener inquiries from Yongnian, Handan, China.

    Our published company certificates, factory photographs, production information and selected supply references help buyers evaluate manufacturing and quality-control capabilities.

    For a quotation, provide the product standard or drawing, size, material or grade, surface finish, quantity, packing requirement and destination.
