Black Oxide DIN 2093 Disc Spring Belleville Washers 304 stainless steel Belleville spring washer

Name: Black Oxide DIN 2093 Disc Spring Belleville Washers 304 stainless steel Belleville spring washer
Brand: YONGYI

Moq: Confirmed by product, size, grade, finish and quantity

Price: Quoted to specification, quantity, coating, packing and Incoterm

Package: Bags, boxes, cartons, pallets or customer-specified export packing

Export port: Tianjin, Qingdao or Shanghai, as confirmed in the quotation

Delivery date: Confirmed after specification, quantity and production review

Payment method: T/T or other terms stated in the official PI or contract

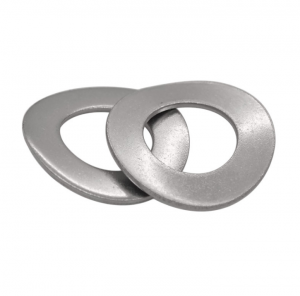

304 stainless steel corrugated gasket three wave peak gasket multi wave spring gasket

MOQ: Contact us

Price: Contact us

Product Photos and Information

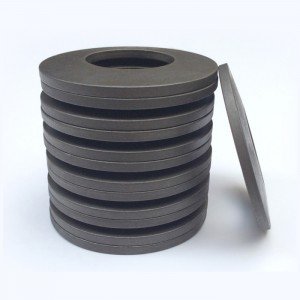

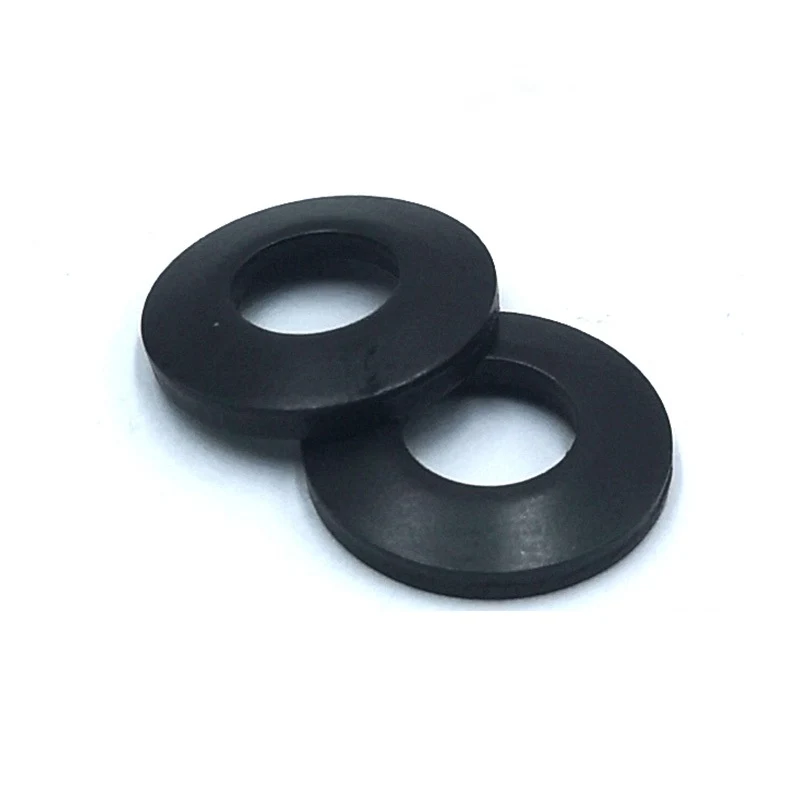

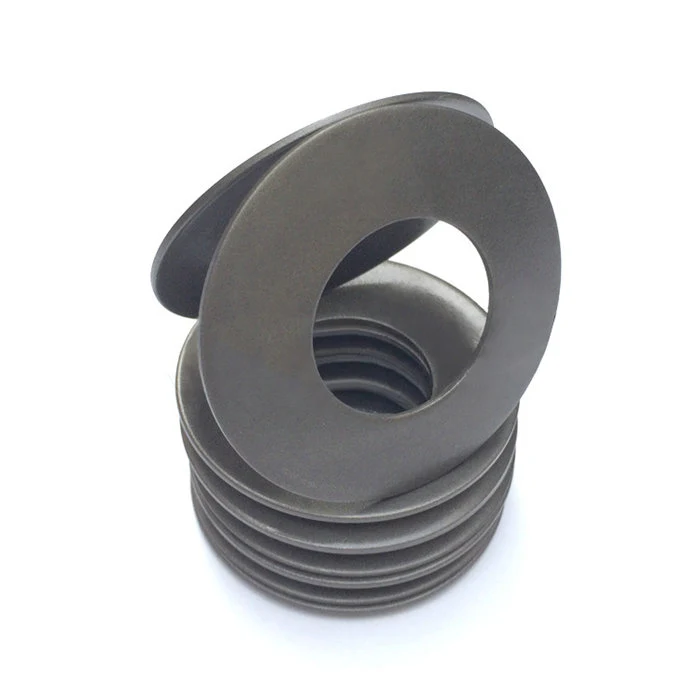

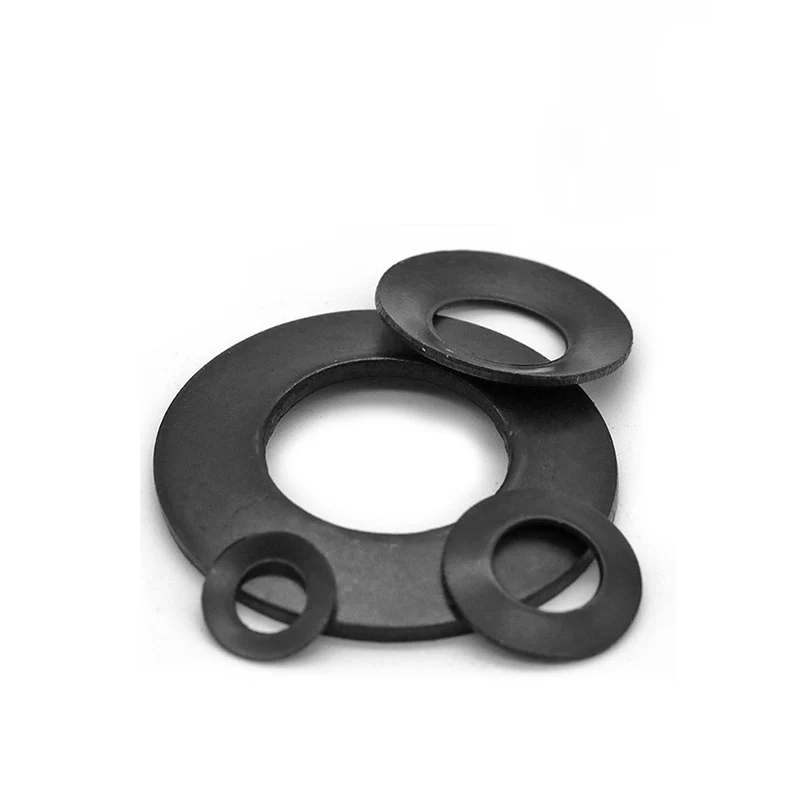

Black Oxide DIN2093 Disc Spring Belleville Washers

Name	Spring Washers	Materials	Carbon Steel/Stainless Steel
Standards	DIN ISO ANC BSW JIS etc.	Strength level	4.8 8.8 etc.
Size	M4-M130	Surface finish	ZPBLACKHDG etc.
Length	/	Samples	Subject to availability and agreement

Product Standards

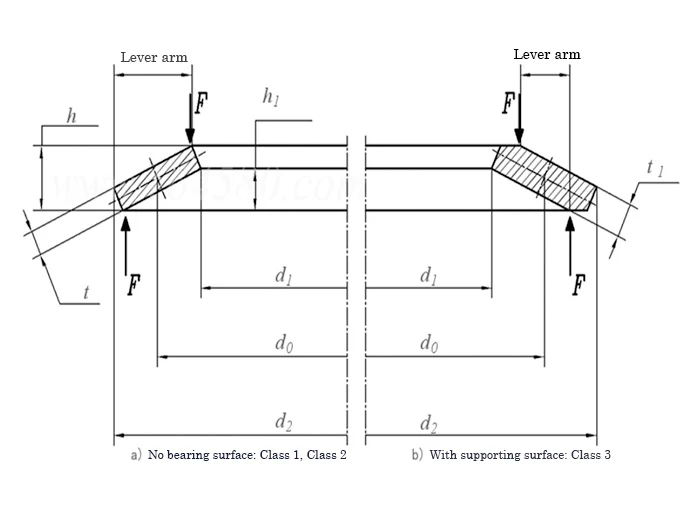

Disc Spring DIN 2093
Specification		8	10	12.5	14	16	18	20	22.5	25	28	31.5	35.5	40	45	50
d 1	Min = Nominal (H12)	4.2	5.2	6.2	7.2	8.2	9.2	10.2	11.2	12.2	14.2	16.3	18.3	20.4	22.4	25.4
d 1	maximum value	4.32	5.32	6.35	7.35	8.35	9.35	10.38	11.38	12.38	14.38	16.48	18.51	20.61	22.61	25.61
d 2	max = nominal (h12)	8	10	12.5	14	16	18	20	22.5	25	28	31.5	35.5	40	45	50
d 2	minimum	7.85	9.85	12.32	13.82	15.82	17.82	19.79	22.29	24.79	27.79	31.25	35.25	39.75	44.75	49.75
t		0.4	0.5	0.7	0.8	0.9	1	1.1	1.25	1.5	1.5	1.75	2	2.25	2.5	3
t 1		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
h 1		0.2	0.25	0.3	0.3	0.35	0.4	0.45	0.5	0.55	0.65	0.7	0.8	0.9	1	1.1
h		0.6	0.75	1	1.1	1.25	1.4	1.55	1.75	2.05	2.15	2.45	2.8	3.15	3.5	4.1
Gasket Type		1	1	1	1	1	1	1	2	2	2	2	2	2	2	2
specification		56	63	71	80	90	100	112	125	140	160	180	200	225	250
c	Min = Nominal (H12)	28.5	31	36	41	46	51	57	64	72	82	92	102	112	127
c	max	28.71	31.25	36.25	41.25	46.25	51.3	57.3	64.3	72.3	82.35	92.35	102.35	112.35	127.4
c	max = nominal (h12)	56	63	71	80	90	100	112	125	140	160	180	200	225	250
c	Min	55.7	62.7	70.7	79.7	89.65	99.65	111.65	124.6	139.6	159.6	179.6	199.54	224.54	249.54
t		3	3.5	4	5	5	6	6	8	8	10	10	12	12	14
t 1		-	-	-	-	-	-	-	7.5	7.5	9.4	9.4	11.25	11.25	13.1
h 1		1.3	1.4	1.6	1.7	2	2.2	2.5	2.6	3.2	3.5	4	4.2	5	5.6
h		4.3	4.9	5.6	6.7	7	8.2	8.5	10.6	11.2	13.5	14	16.2	17	19.6
Gasket Type		2	2	2	2	2	2	2	3	3	3	3	3	3	3

About Us

YONGYI Fasteners supports industrial and project fastener inquiries from Yongnian, Handan, China.

Our published company certificates, factory photographs, production information and selected supply references help buyers evaluate manufacturing and quality-control capabilities.

For a quotation, provide the product standard or drawing, size, material or grade, surface finish, quantity, packing requirement and destination.
