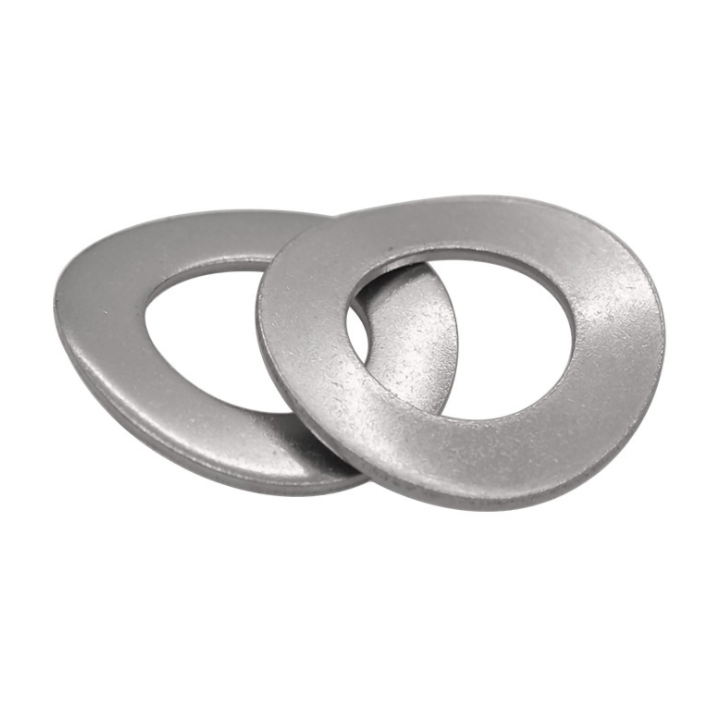

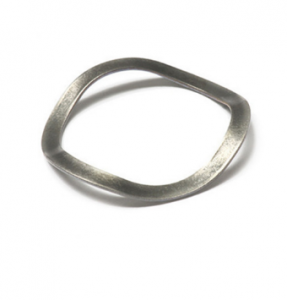

304 stainless steel corrugated gasket three wave peak gasket multi wave spring gasket

Name: 304 stainless steel corrugated gasket three wave peak gasket multi wave spring gasket
Brand: YONGYI

Moq: Confirmed by product, size, grade, finish and quantity

Price: Quoted to specification, quantity, coating, packing and Incoterm

Package: Bags, boxes, cartons, pallets or customer-specified export packing

Export port: Tianjin, Qingdao or Shanghai, as confirmed in the quotation

Delivery date: Confirmed after specification, quantity and production review

Payment method: T/T or other terms stated in the official PI or contract

Black Oxide DIN2093 Disc Spring Belleville Washers 304 stainless steel Belleville spring washer

MOQ: Contact us

Price: Contact us

Product Photos and Information

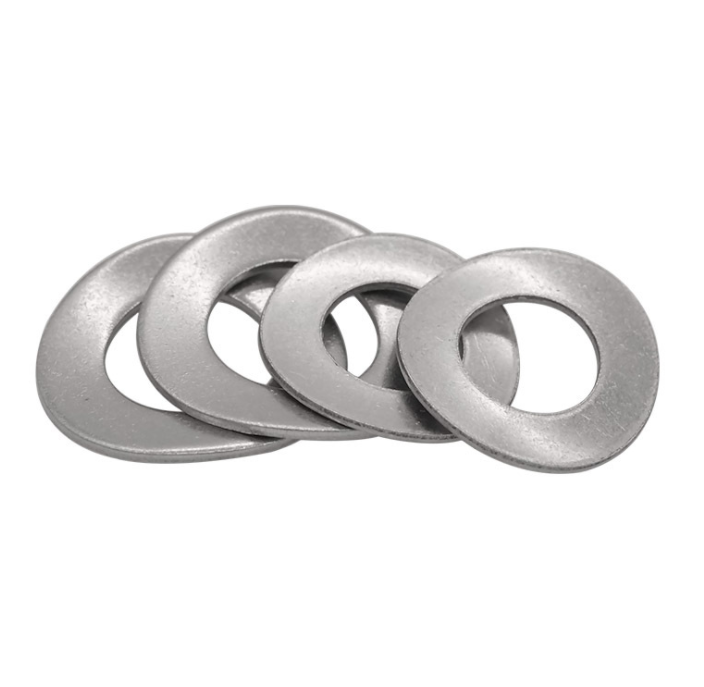

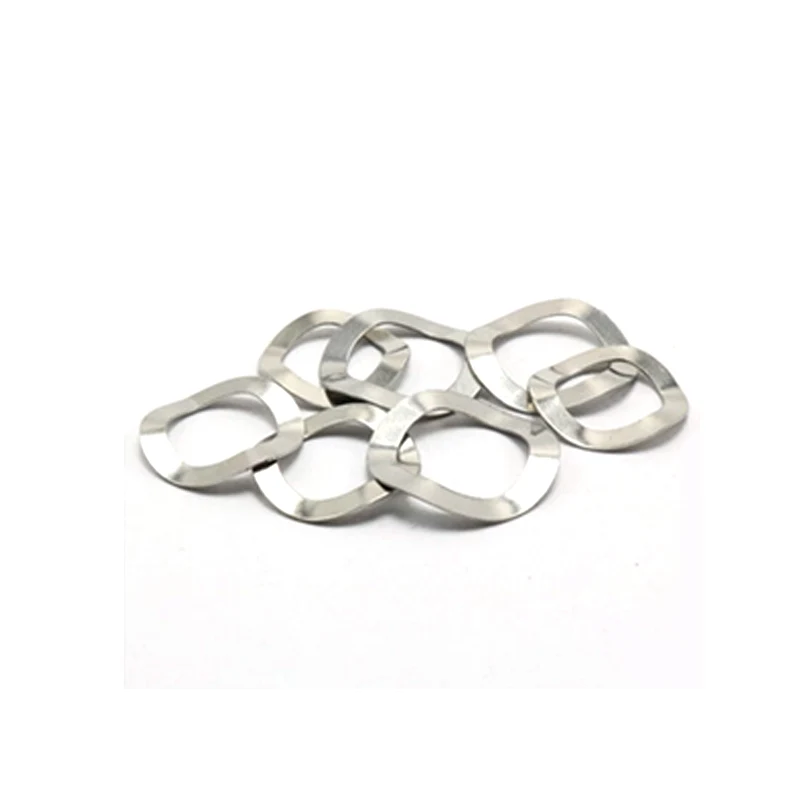

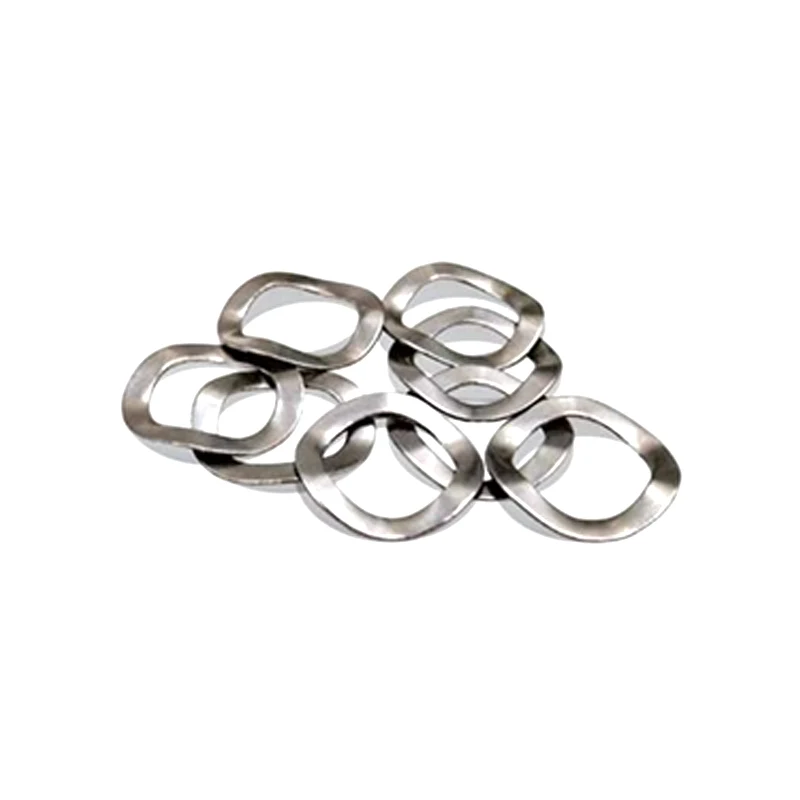

Stainless Steel DIN137 DIN42013 Wave Washers

Name	Saddle Spring Washers	Materials	Carbon Steel/Stainless Steel
Standards	DIN ISO ANC BSW JIS etc.	Strength level	50MN 65MN 4.8 8.8 etc.
Size	M1-M10	Surface finish	ZPPlain etc.
Length	0.35-2	Samples	Subject to availability and agreement

Product Standards

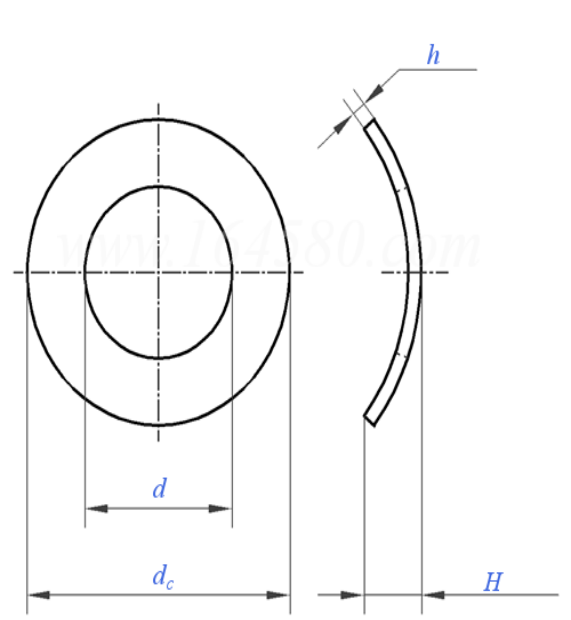

Saddle spring washers DIN 137
nominal diameter		1	1.2	1.4	1.7	1.8	2	2.3	2.6
d	Min = Nominal (H14)	1.1	1.3	1.5	1.8	1.9	2.2	2.5	2.8
d	maximum value	1.35	1.55	1.75	2.05	2.15	2.45	2.75	3.05
dc	Nominal (js16)	2.5	3	3	4	4	4.5	5	5.5
	maximum value	2.8	3.3	3.3	4.375	4.375	4.875	5.375	5.875
	minimum	2.2	2.7	2.7	3.625	3.625	4.125	4.625	5.125
h	Nominal	0.2	0.2	0.25	0.25	0.25	0.3	0.3	0.3
	maximum value	0.22	0.22	0.27	0.27	0.27	0.33	0.33	0.33
	minimum	0.18	0.18	0.23	0.23	0.23	0.27	0.27	0.27
H	minimum	0.35	0.35	0.4	0.45	0.45	0.5	0.5	0.55
H	maximum value	0.7	0.7	0.8	0.9	0.9	1	1	1.1
Thousand pieces (steel)≈kg	≈	0.006	0.009	0.01	0.02	0.02	0.028	0.035	0.041
nominal diameter		3	3.5	4	5	6	7	8	10
d	Min = Nominal (H14)	3.2	3.7	4.3	5.3	6.4	7.4	8.4	10.5
d	maximum value	3.5	4	4.6	5.6	6.76	7.76	8.76	10.93
dc	Nominal (js16)	6	7	8	10	11	12	15	18
	maximum value	6.375	7.45	8.45	10.45	11.55	12.55	15.55	18.55
	minimum	5.625	6.55	7.55	9.55	10.45	11.45	14.45	17.45
h	Nominal	0.4	0.4	0.5	0.5	0.5	0.5	0.5	0.8
	maximum value	0.45	0.45	0.55	0.55	0.55	0.55	0.55	0.86
	minimum	0.35	0.35	0.45	0.45	0.45	0.45	0.45	0.74
H	minimum	0.65	0.7	0.8	0.9	1.1	1.2	1.7	2
H	maximum value	1.3	1.4	1.6	1.8	2.2	2.4	3.4	4
Thousand pieces (steel)≈kg	≈	0.063	0.088	0.14	0.222	0.247	0.265	0.476	1.05

About Us

YONGYI Fasteners supports industrial and project fastener inquiries from Yongnian, Handan, China.

Our published company certificates, factory photographs, production information and selected supply references help buyers evaluate manufacturing and quality-control capabilities.

For a quotation, provide the product standard or drawing, size, material or grade, surface finish, quantity, packing requirement and destination.
