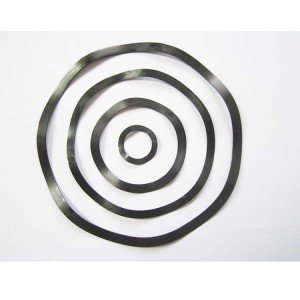

304 stainless steel wave spring washer DIN 137 wavy elastic washer bearing pad

Name: 304 stainless steel wave spring washer DIN 137 wavy elastic washer bearing pad
Brand: YONGYI

Moq: Confirmed by product, size, grade, finish and quantity

Price: Quoted to specification, quantity, coating, packing and Incoterm

Package: Bags, boxes, cartons, pallets or customer-specified export packing

Export port: Tianjin, Qingdao or Shanghai, as confirmed in the quotation

Delivery date: Confirmed after specification, quantity and production review

Payment method: T/T or other terms stated in the official PI or contract

Product Photos and Information

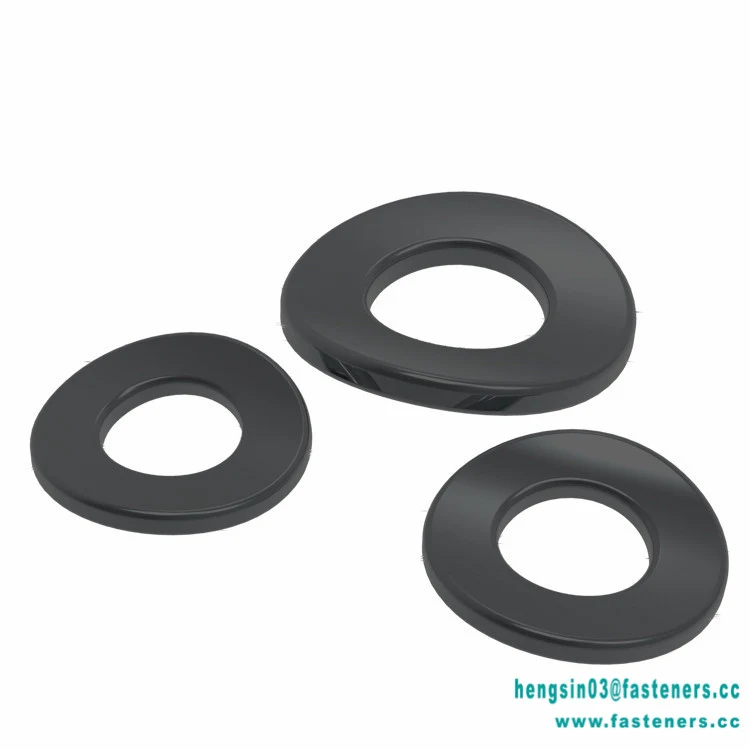

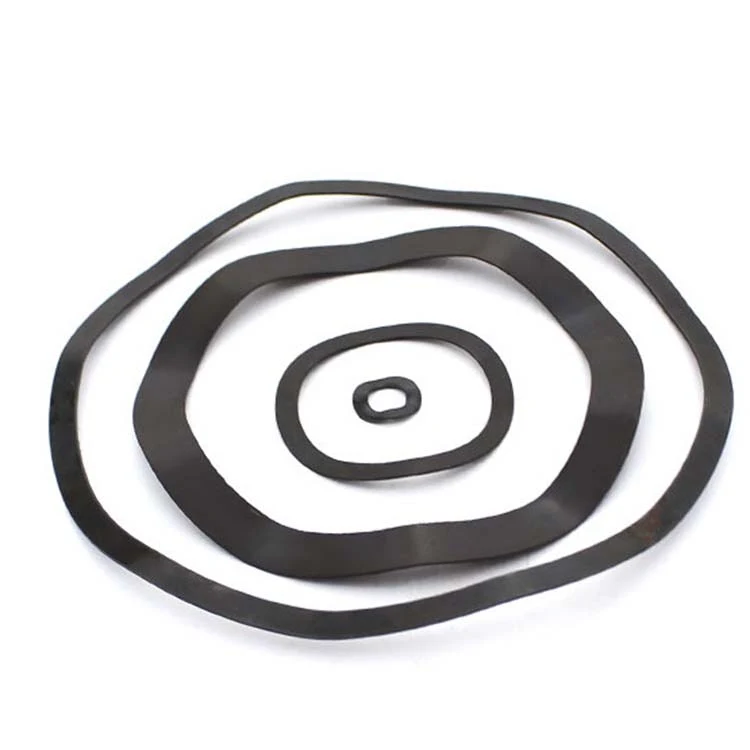

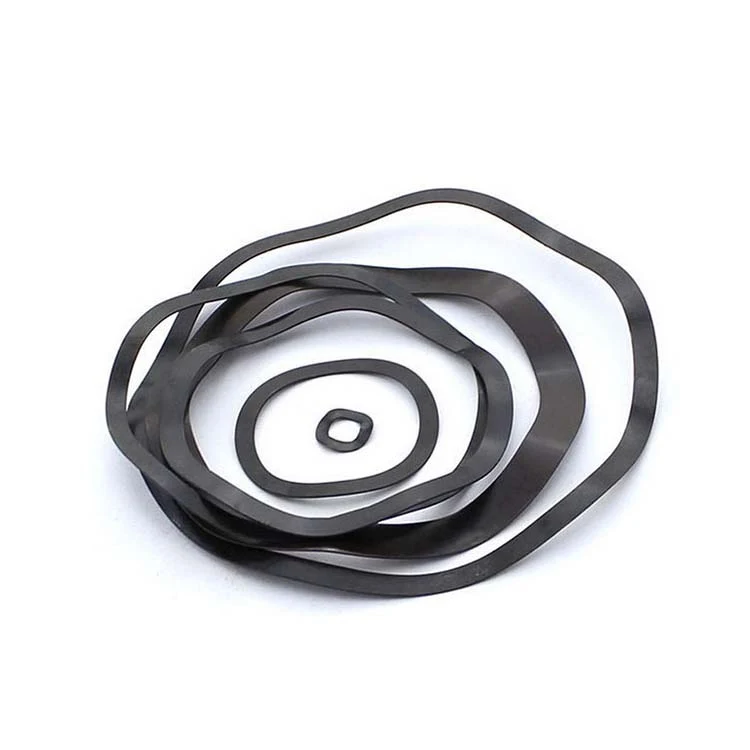

Black Oxide DIN137 DIN42013 Wave Washers

Name	Saddle Spring Washers	Materials	Carbon Steel/Stainless Steel
Standards	DIN ISO ANC BSW JIS etc.	Strength level	50MN 65MN 4.8 8.8 etc.
Size	M1-M10	Surface finish	ZPPlain etc.
Length	0.35-2	Samples	Subject to availability and agreement

Product Standards

Saddle spring washers DIN 137
nominal diameter		1	1.2	1.4	1.7	1.8	2	2.3	2.6
d	Min = Nominal (H14)	1.1	1.3	1.5	1.8	1.9	2.2	2.5	2.8
d	maximum value	1.35	1.55	1.75	2.05	2.15	2.45	2.75	3.05
dc	Nominal (js16)	2.5	3	3	4	4	4.5	5	5.5
	maximum value	2.8	3.3	3.3	4.375	4.375	4.875	5.375	5.875
	minimum	2.2	2.7	2.7	3.625	3.625	4.125	4.625	5.125
h	Nominal	0.2	0.2	0.25	0.25	0.25	0.3	0.3	0.3
	maximum value	0.22	0.22	0.27	0.27	0.27	0.33	0.33	0.33
	minimum	0.18	0.18	0.23	0.23	0.23	0.27	0.27	0.27
H	minimum	0.35	0.35	0.4	0.45	0.45	0.5	0.5	0.55
H	maximum	0.7	0.7	0.8	0.9	0.9	1	1	1.1
Thousand pieces (steel) ≈ kilograms	≈	0.006	0.009	0.01	0.02	0.02	0.028	0.035	0.041
Nominal diameter		3	3.5	4	5	6	7	8	10
d	Min = Nominal (H14)	3.2	3.7	4.3	5.3	6.4	7.4	8.4	10.5
d	maximum	3.5	4	4.6	5.6	6.76	7.76	8.76	10.93
dc	Nominal (js16)	6	7	8	10	11	12	15	18
	maximum	6.375	7.45	8.45	10.45	11.55	12.55	15.55	18.55
	minimum	5.625	6.55	7.55	9.55	10.45	11.45	14.45	17.45
h	Nominal	0.4	0.4	0.5	0.5	0.5	0.5	0.5	0.8
	maximum	0.45	0.45	0.55	0.55	0.55	0.55	0.55	0.86
	minimum	0.35	0.35	0.45	0.45	0.45	0.45	0.45	0.74
H	minimum	0.65	0.7	0.8	0.9	1.1	1.2	1.7	2
H	maximum	1.3	1.4	1.6	1.8	2.2	2.4	3.4	4
Thousand pieces (steel) ≈ kilograms	≈	0.063	0.088	0.14	0.222	0.247	0.265	0.476	1.05
