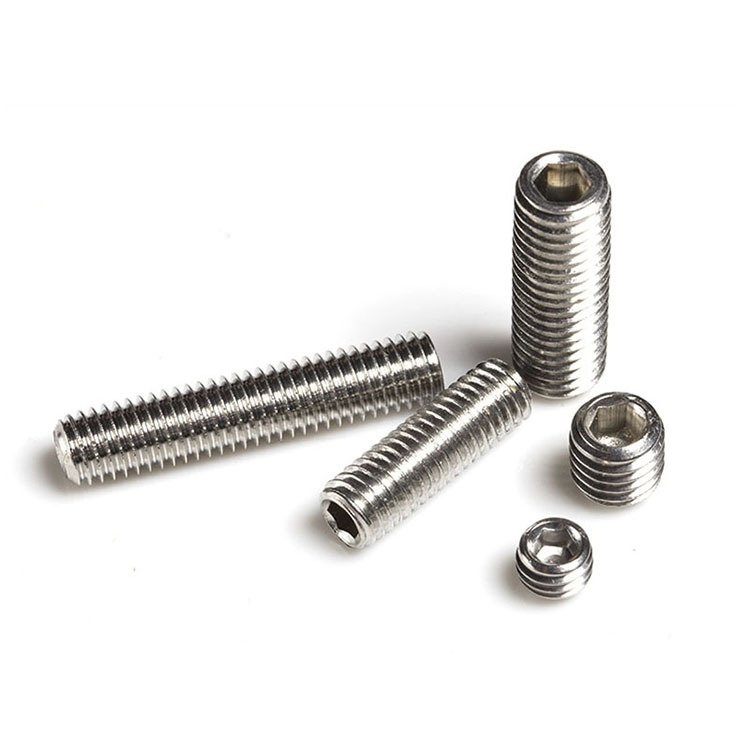

Stainless Steel A2-70 A4-80 DIN 916 set bolt
-
High Strength Grade j-Bolts Anchor Bolts Embedded fixing bolts
MOQ: Contact usPrice: Contact us -
High Strength Grade Foundation Bolts Type L M10-M20
MOQ: Contact usPrice: Contact us -
High Strength Grade 4.8 8.8 10.9 12.9 Black Oxide DIN186 T Bolts
MOQ: Contact usPrice: Contact us -
High Strength Grade 4.8 8.8 10.9 12.9 Dacromet DIN6921 Flange Bolts
MOQ: Contact usPrice: Contact us -
Rivet bolts Φ2.4-Φ5 Blind rivet bolts Stainless steel
MOQ: Contact usPrice: Contact us -
Welding Bolt
MOQ: Contact usPrice: Contact us

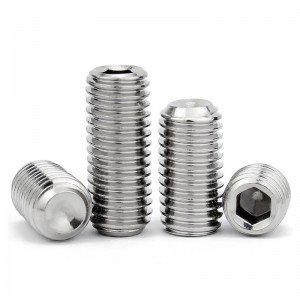

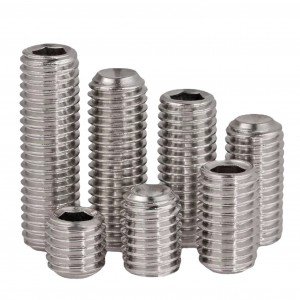

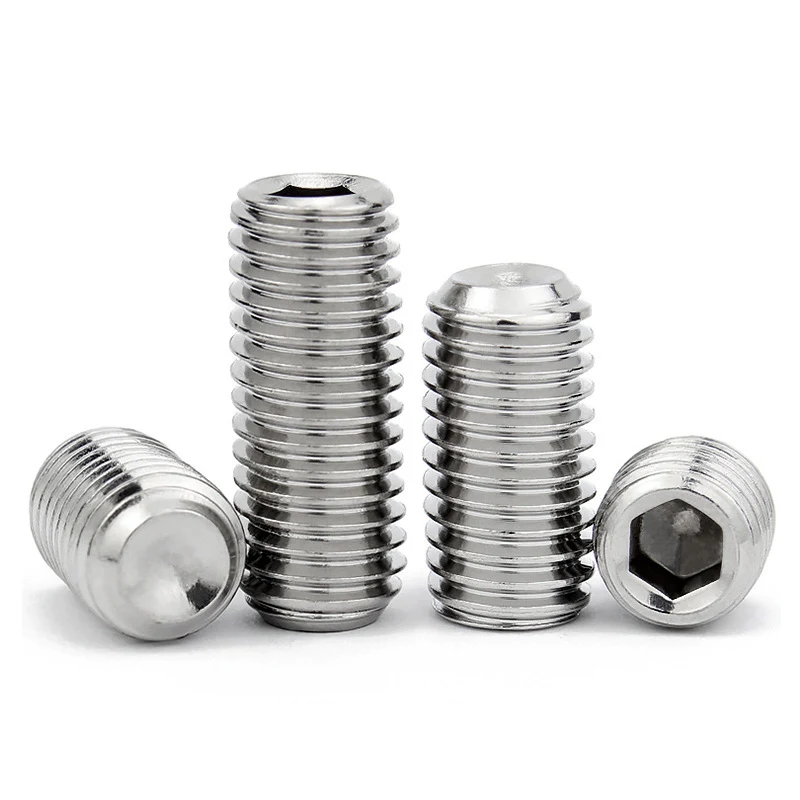

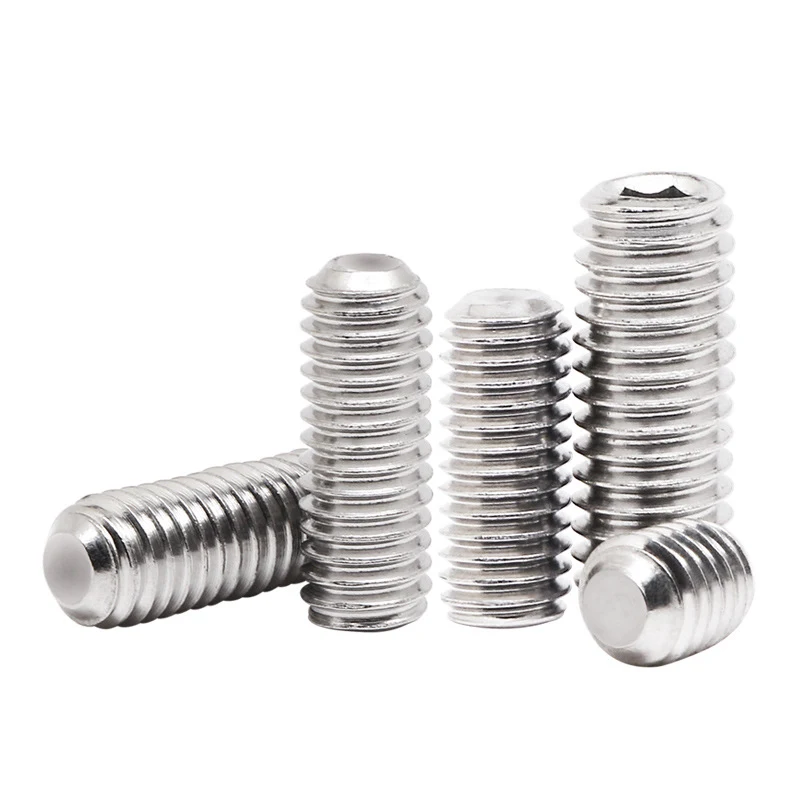

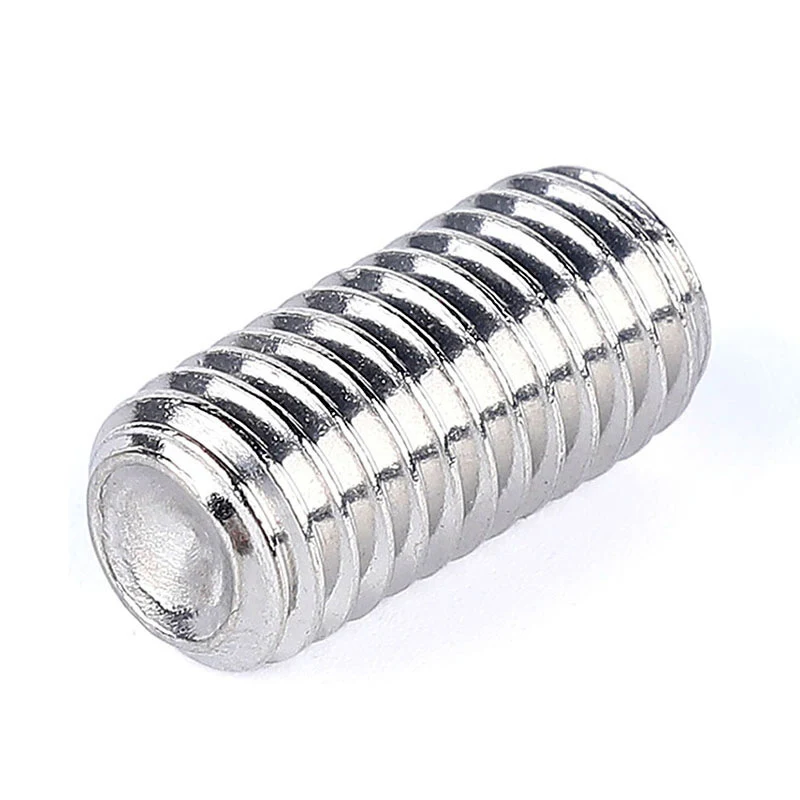

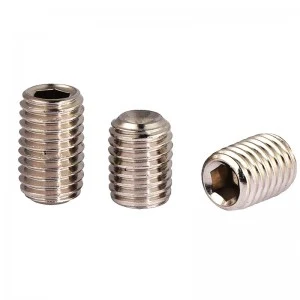

Product Photos and Information
| Name | Set Bolt |
| Standards | DIN ISO ANC BSW JIS etc. |
| Size | M3-24 |
| Length | 15-500 |
| Materials | Carbon Steel/Stainless Steel |
| Strength level | 4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80 |
| Surface finish | ZP/HDG/BLACK etc. |
| Samples | Subject to availability and agreement |

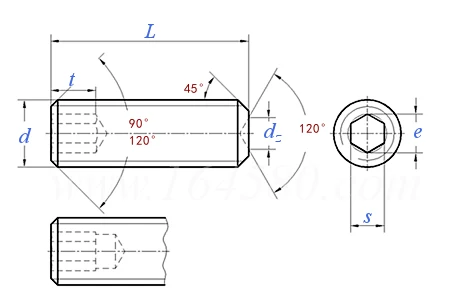

Product Standards
|
Thread Size (d) |
M1.4 |
M1.6 |
M1.8 |
M2 |
M2.5 |
M3 |
M4 |
M5 |
M6 |
| Pitch (P) | 0.3 | 0.35 | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 |
| dp (Max Value) | - | - | - | - | - | - | - | 1.5 | |
| dp (Min Value) | - | - | - | - | - | - | - | 0.9 | |
| s (Nominal Value) | 0.7 | 0.7 | 0.7 | 0.9 | 1.3 | 1.5 | 2 | 2.5 | 3 |
| s (Max Value) | 0.724 | 0.724 | 0.724 | 0.902 | 1.295 | 1.545 | 2.045 | 2.56 | 3.06 |
| t (Min Value) | 0.711 | 0.711 | 0.711 | 0.889 | 1.27 | 1.52 | 2.02 | 2.52 | 3.02 |
| z (Short Screw Length - Max) | 0.65 | 0.65 | 0.65 | 0.75 | 0.88 | 1 | 1.25 | 1.5 | 1.75 |
| z (Short Screw Length - Min) | 0.4 | 0.4 | 0.5 | 0.5 | 0.63 | 0.75 | 1 | 1.25 | 1.5 |
| z (Long Screw Length - Max) | 1.05 | 1.05 | 1.25 | 1.25 | 1.5 | 1.75 | 2.25 | 2.75 | 3.25 |
| z (Long Screw Length - Min) | 0.8 | 0.8 | 1 | 1 | 1.25 | 1.5 | 2 | 2.5 | 3 |
| e (Min Value) | 0.803 | 0.803 | 0.803 | 1.003 | 1.427 | 1.73 | 2.3 | 2.87 | 3.44 |
| L0 (Nominal Length) | 2 | 2.5 | 3 | 3 | 4 | 5 | 6 | 6 | 8 |
| Weight per 1000 pcs (kg) | - | - | - | - | - | - | - | - | - |
|
Thread Size (d) |
M8 |
M10 |
M12 |
M14 |
M16 |
M18 |
M20 |
M22 |
M24 |
| Pitch (P) | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 |
| dp (Max Value) | 5.5 | 7 | 8.5 | 10 | 12 | 13 | 15 | 17 | 18 |
| dp (Min Value) | 5.2 | 6.64 | 8.14 | 9.64 | 11.57 | 12.57 | 14.57 | 16.57 | 17.57 |
| s (Nominal Value) | 4 | 5 | 6 | 6 | 8 | 10 | 10 | 12 | 12 |
| s (Max Value) | 4.095 | 5.095 | 6.095 | 6.095 | 8.115 | 10.115 | 10.115 | 12.142 | 12.142 |
| t (Min Value) | 4.02 | 5.02 | 6.02 | 6.02 | 8.025 | 10.025 | 10.025 | 12.032 | 12.032 |
| z (Short Screw Length - Max) | 3 | 4 | 4.8 | 5.6 | 6.4 | 7.2 | 8 | 9 | 10 |
| z (Short Screw Length - Min) | 5 | 6 | 8 | 9 | 10 | 11 | 12 | 13.5 | 15 |
| z (Long Screw Length - Max) | 2.25 | 2.75 | 3.25 | 3.8 | 4.3 | 4.8 | 5.3 | 5.8 | 6.3 |
| z (Long Screw Length - Min) | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 |
| e (Min Value) | 4.3 | 5.3 | 6.3 | 7.36 | 8.36 | 9.86 | 10.36 | 11.43 | 12.43 |
| L0 (Nominal Length) | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Weight per 1000 pcs (kg) | 10 | 12 | 16 | 20 | 20 | 25 | 25 | 30 | 30 |
About Us
YONGYI Fasteners supports industrial and project fastener inquiries from Yongnian, Handan, China.
Our published company certificates, factory photographs, production information and selected supply references help buyers evaluate manufacturing and quality-control capabilities.
For a quotation, provide the product standard or drawing, size, material or grade, surface finish, quantity, packing requirement and destination.
