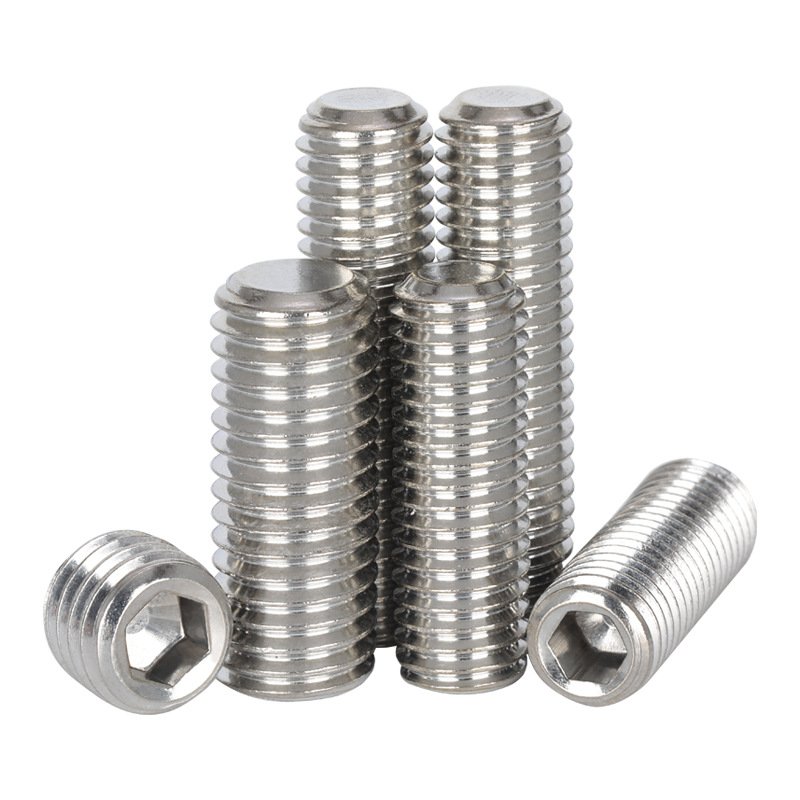

Stainless steel 4.8 8.8 12.9 din 913 set bolt
-
ASTM A325 A325M Heavy Structural Bolts
MOQ: Contact usPrice: Contact us -
Black oxide 4.8 8.8 12.9 DIN913 set bolt
MOQ: Contact usPrice: Contact us -
Rivet bolts Φ3.2-Φ6.4 Closed-end flat round head blind rivets Aluminum iron material
MOQ: Contact usPrice: Contact us -
High Strength Grade Zinc Plate U-Bolts Square Bends ASME
MOQ: Contact usPrice: Contact us -
High Strength Grade 4.8 8.8 10.9 12.9 Hot Dip Galvanized HDG DIN7991 CSK Flat Head Hex Socket Bolts
MOQ: Contact usPrice: Contact us -
High Strength Grade j-Bolts Anchor Bolts
MOQ: Contact usPrice: Contact us

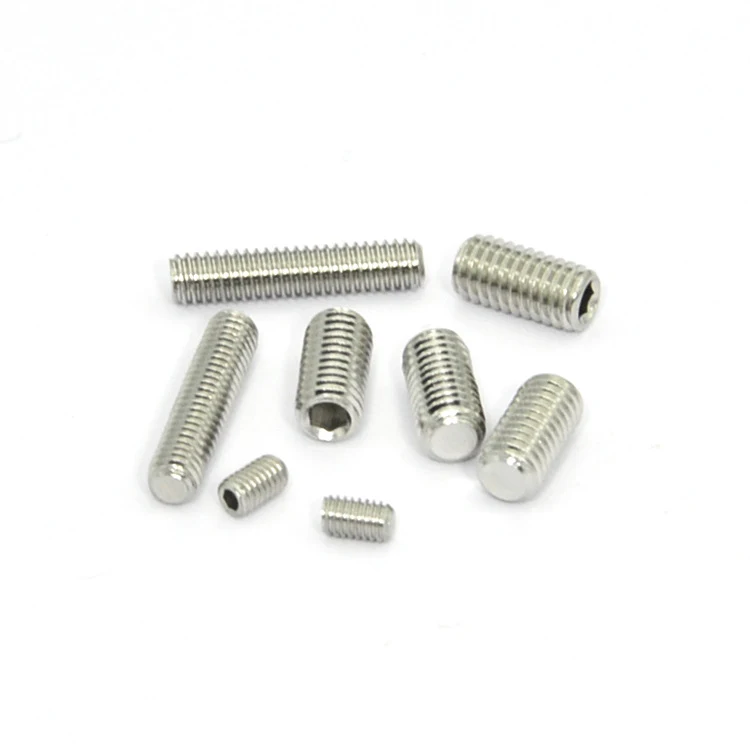

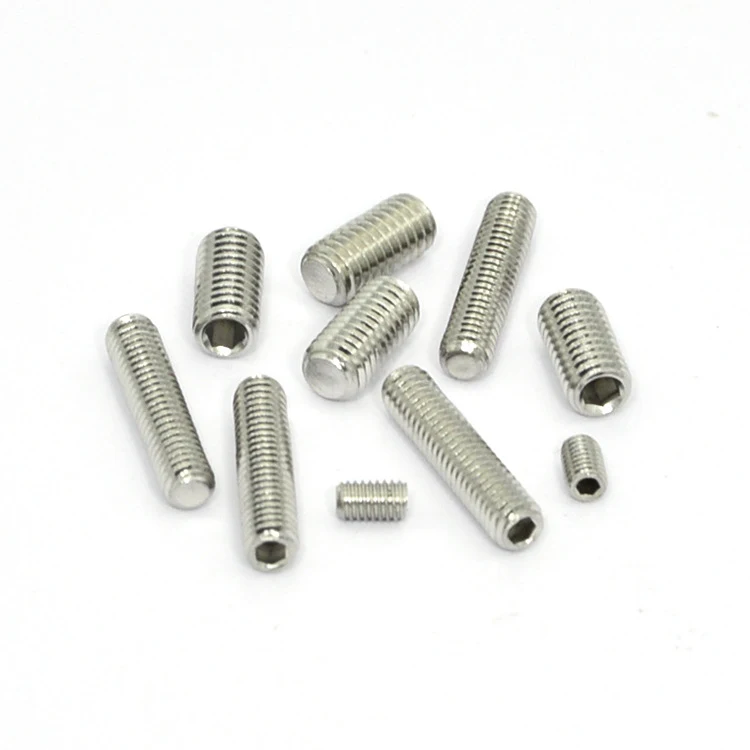

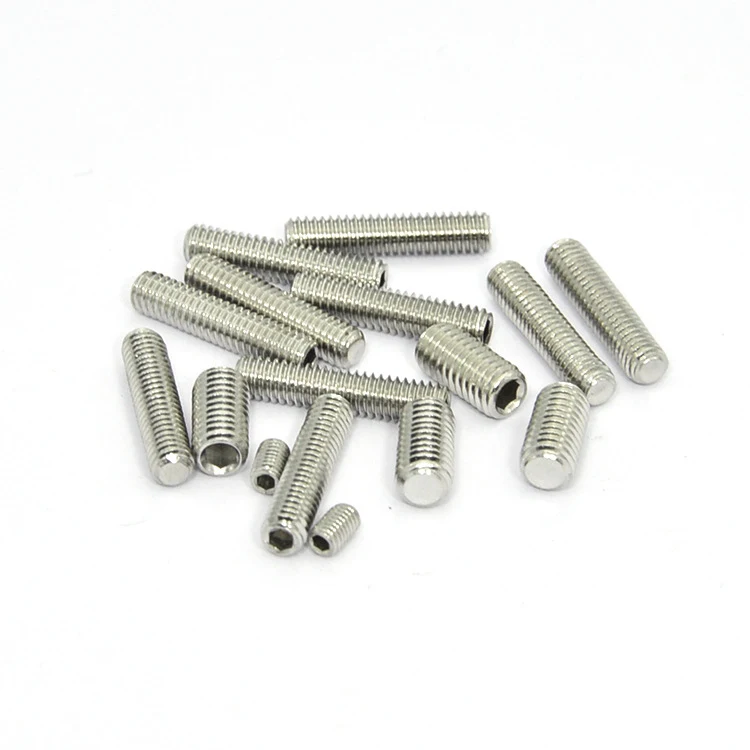

Product Photos and Information
| Name | Set Bolt |
| Standards | DIN ISO ANC BSW JIS etc. |
| Size | M3-24 |
| Length | 15-500 |
| Materials | Carbon Steel/Stainless Steel |
| Strength level | 4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80 |
| Surface finish | ZP/HDG/BLACK etc. |
| Samples | Subject to availability and agreement |

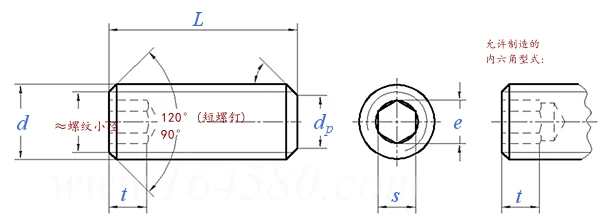

Product Standards
| Thread Size (d) | M1.4 | M1.6 | M1.8 | M2 | M2.5 | M3 | M4 | M5 | M6 |
| Pitch (P) | - | - | - | - | - | - | - | - | - |
| dp (Max Value) | 0.7 | 0.8 | 0.9 | 1 | 1.5 | 2 | 2.5 | 3.5 | 4 |
| dp (Min Value) | 0.45 | 0.55 | 0.65 | 0.75 | 1.25 | 1.75 | 2.25 | 3.2 | 3.7 |
| e (Min Value) | 0.803 | 0.803 | 0.803 | 1.003 | 1.427 | 1.73 | 2.3 | 2.87 | 3.44 |
| s (Nominal Value) | 0.7 | 0.7 | 0.7 | 0.9 | 1.3 | 1.5 | 2 | 2.5 | 3 |
| s (Max Value) | 0.724 | 0.724 | 0.724 | 0.902 | 1.295 | 1.545 | 2.045 | 2.56 | 3.08 |
| t (Min Value) | 0.711 | 0.711 | 0.711 | 0.889 | 1.27 | 1.52 | 2.02 | 2.52 | 3.02 |
| L0 (Nominal Value) | 0.6 | 0.7 | 0.8 | 0.8 | 1.2 | 1.2 | 1.5 | 2 | 2 |
| Short Screw Length (L0) | 1.4 | 1.5 | 1.6 | 1.7 | 2 | 2 | 2.5 | 3 | 3.5 |
| Long Screw Length (L0) | 2 | 2.5 | 2.5 | 3 | 3 | 4 | 5 | 6 | 6 |
| Weight (kg per 1000 pcs) | - | - | - | - | - | - | - | - | - |
|
Thread Size (d) |
M8 |
M10 |
M12 |
M14 |
M16 |
M18 |
M20 |
M22 |
M24 |
| Pitch (P) | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 |
| dp (Max Value) | 5.5 | 7 | 8.5 | 10 | 12 | 13 | 15 | 17 | 18 |
| dp (Min Value) | 5.2 | 6.64 | 8.14 | 9.64 | 11.57 | 12.57 | 14.57 | 16.57 | 17.57 |
| e (Min Value) | 4.58 | 5.72 | 6.86 | 6.86 | 9.15 | 11.43 | 11.43 | 13.72 | 13.72 |
| s (Nominal Value) | 4 | 5 | 6 | 6 | 8 | 10 | 10 | 12 | 12 |
| s (Max Value) | 4.095 | 5.095 | 6.095 | 6.095 | 8.115 | 10.115 | 10.115 | 12.142 | 12.142 |
| t (Min Value) | 4.02 | 5.02 | 6.02 | 6.02 | 8.025 | 10.025 | 10.025 | 12.032 | 12.032 |
| L0 (Nominal Value) | 3 | 4 | 4.8 | 5.6 | 6.4 | 7.2 | 8 | 9 | 10 |
| Short Screw Length (L0) | 5 | 6 | 8 | 9 | 10 | 11 | 12 | 13.5 | 15 |
| Long Screw Length (L0) | 6 | 8 | 12 | 14 | 16 | 16 | 16 | 18 | 20 |
| Weight (kg per 1000 pcs) | - | - | - | - | - | - | - | - | - |
