Welcome To Know Our Products,We Can Offer You High Quality Products!
-
ProductsYongyi Fasteners supplies bolts, nuts, washers, anchors, threaded rods, screws and custom fasteners according to DIN, ISO, ANSI/ASME, ASTM, SAE and GB standards.
-
About usLearn about Hebei Yongyi Fasteners Manufacturing Co., Ltd., our factory, certificates, production equipment and quality-control capabilities in Yongnian, China.
-
NewsRead YONGYI factory updates, fastener standards, purchasing guides, project references and export supply information.
-
ServiceExplore YONGYI fastener applications, OEM and drawing-based manufacturing, inspection support, packing and export order services.

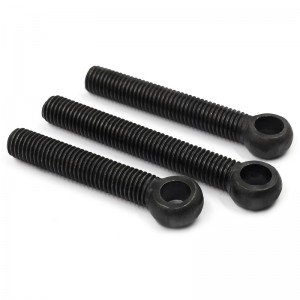

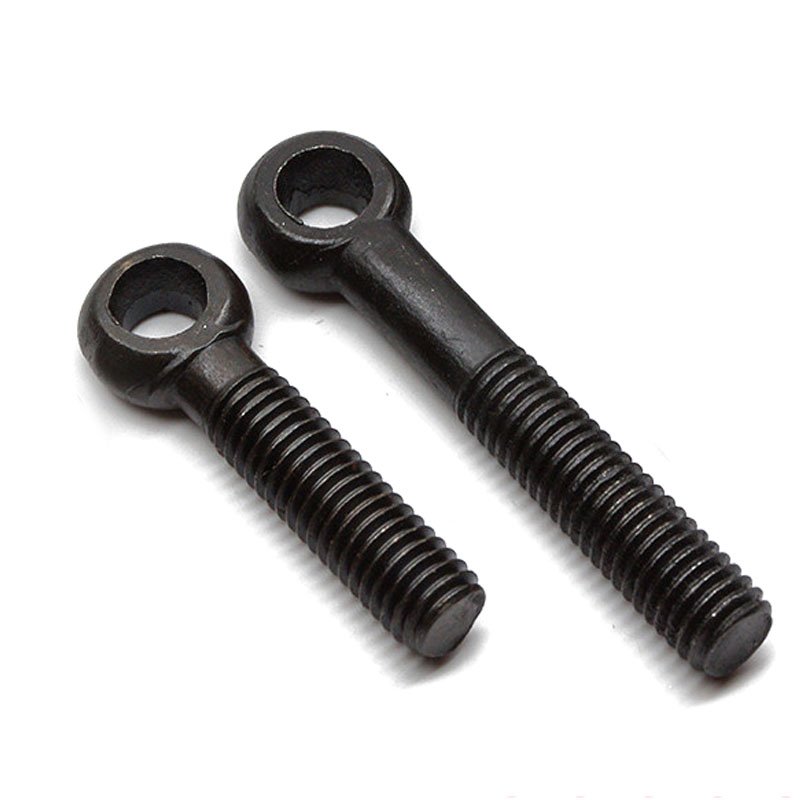

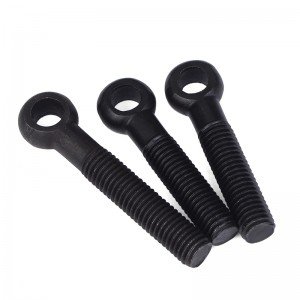

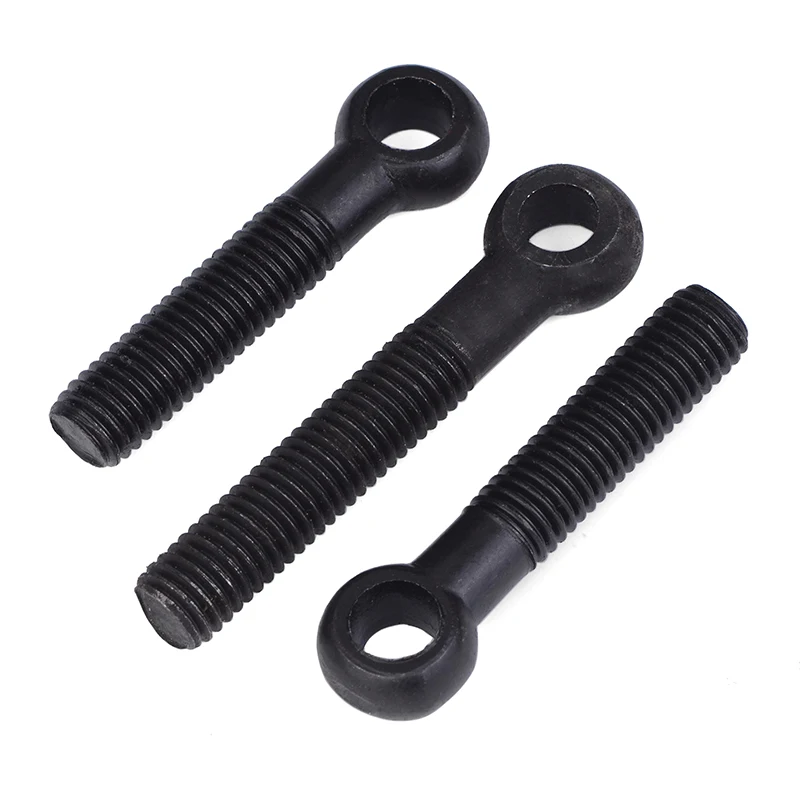

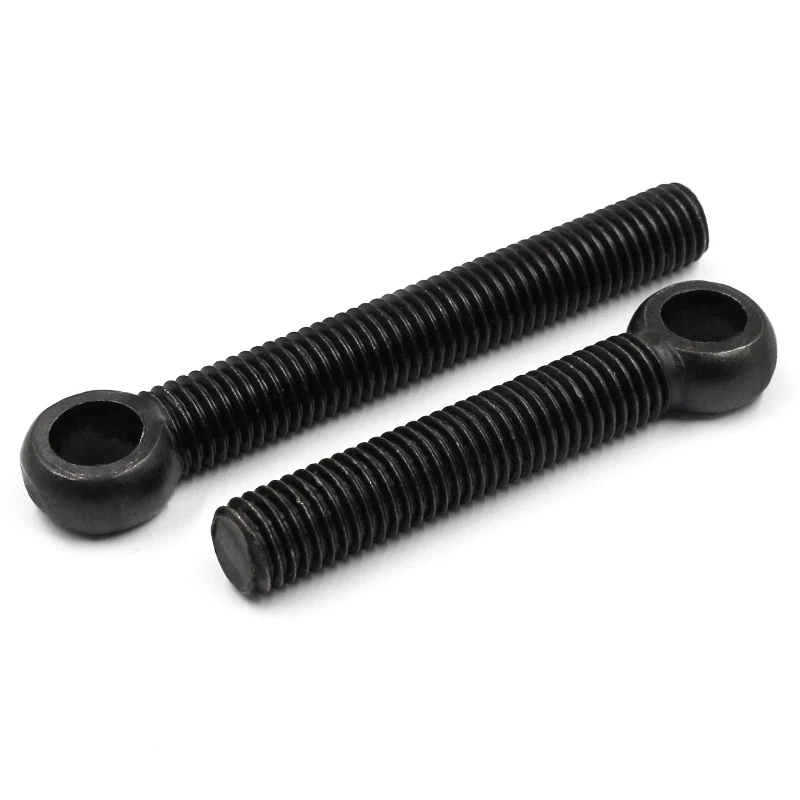

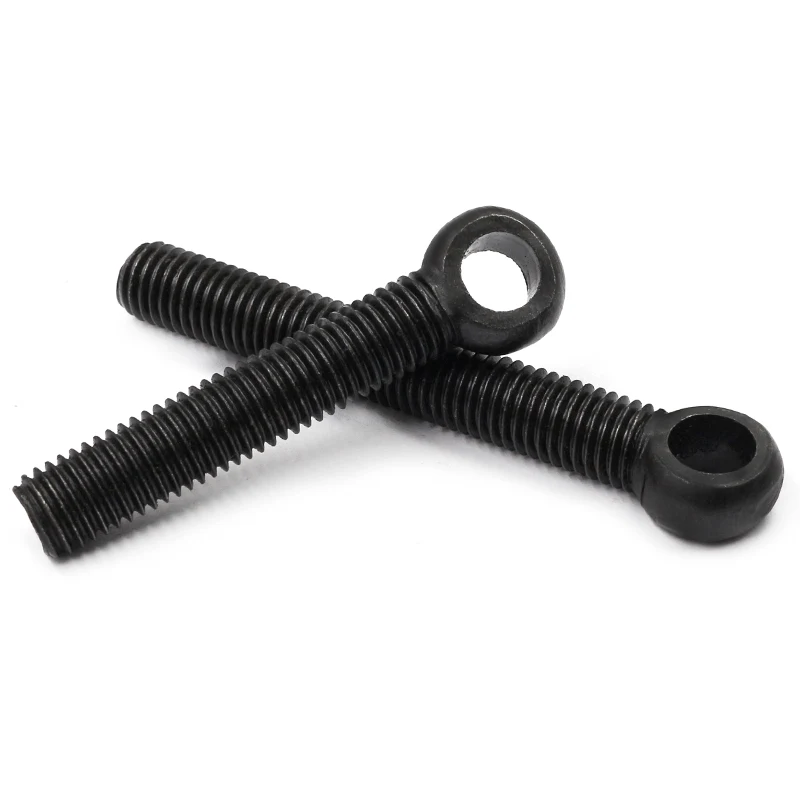

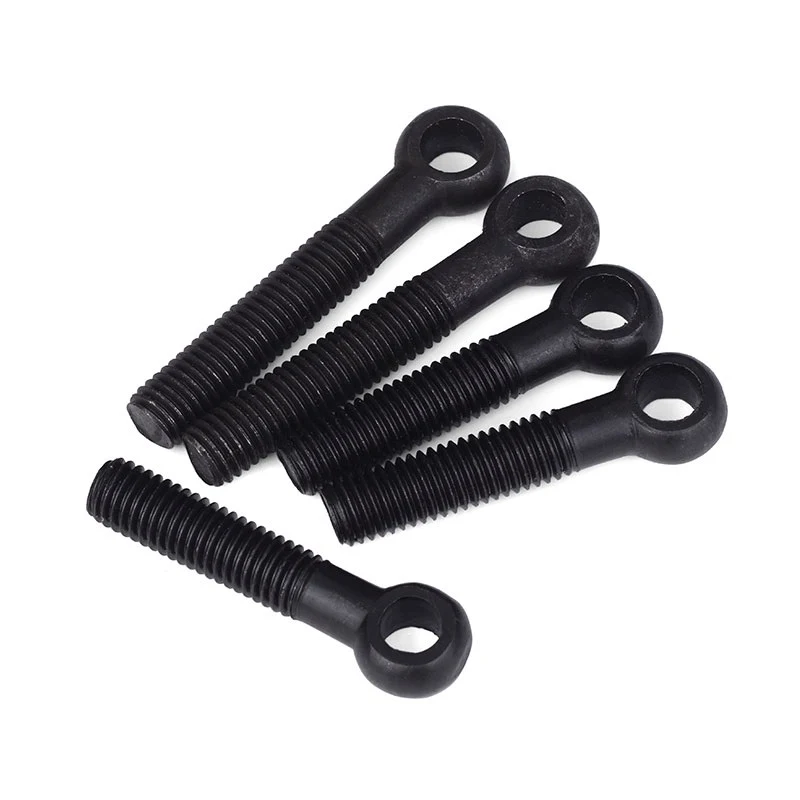

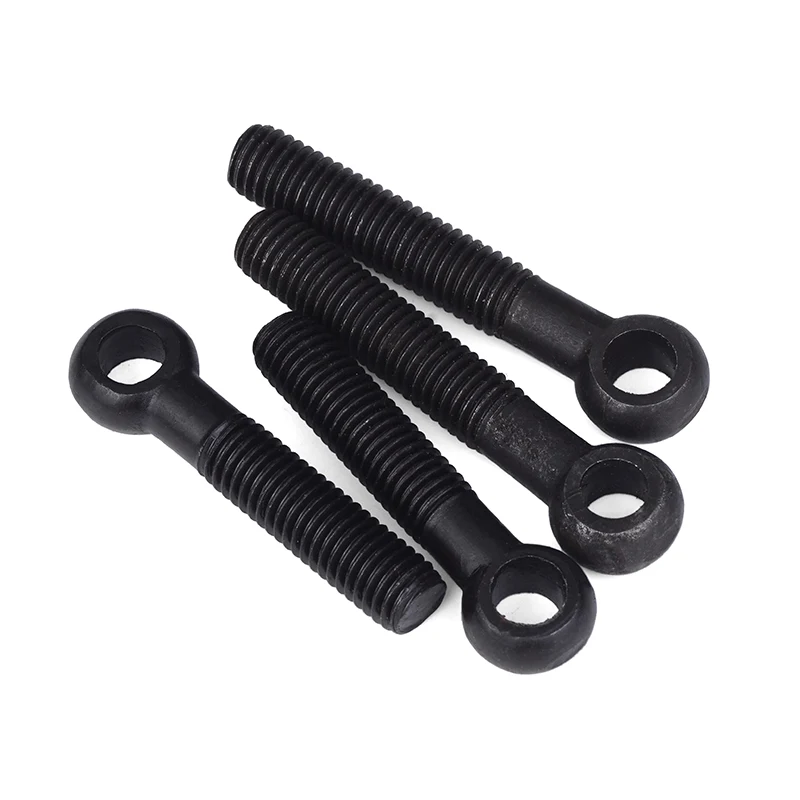

High Strength Grade 4.8 8.8 10.9 12.9 Steel Black Oxide DIN 444 Eye Bolts
-
Steel structure bolts 8.8 10.9 12.9 high-strength hex bolts Heavy bolts
MOQ: Contact usPrice: Contact us -
Grade 4.8 Carbon Steel DIN931 DIN933 Hot Dip Galvanized HDG Hex Bolts
MOQ: Contact usPrice: Contact us -
High Strength Grade 4.8 8.8 10.9 12.9 Zinc Plated DIN6921 Flange Bolts
MOQ: Contact usPrice: Contact us -
High Strength Grade 4.8 8.8 10.9 12.9 Hot Dip Galvanized HDG DIN7991 CSK Flat Head Hex Socket Bolts
MOQ: Contact usPrice: Contact us -
High Strength Grade Foundation Bolts Type A M8-M72
MOQ: Contact usPrice: Contact us -
High Strength Grade j-Bolts Anchor Bolts
MOQ: Contact usPrice: Contact us
Product Photos and Information
| Name | Carriage Bolts |
| Standards | DIN ISO ANC BSW JIS etc. |
| Size | M3-M50 |
| Length | 15-500 |
| Materials | Carbon Steel/Stainless Steel |
| Strength level | 4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80 |
| Surface finish | ZPHDGBLACKDacromet etc. |
| Samples | Subject to availability and agreement |
Product Standards
| Joint Eye Bolts DIN 444 | |||||||||||||
| Thread specification | M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 | (M27) | ||||
| d | |||||||||||||
| P | pitch | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3 | |||
| b | L≤125 | 16 | 18 | twenty two | 26 | 30 | 38 | 46 | 54 | 60 | |||
| 125＜L≤200 | - | - | 28 | 32 | 36 | 44 | 52 | 60 | 66 | ||||
| L＞200 | - | - | - | - | 49 | 57 | 65 | 73 | 79 | ||||
| d 1 | maximum value | 5.03 | 6.03 | 8.036 | 10.036 | 12.043 | 16.043 | 18.043 | 22.052 | 24.052 | |||
| minimum | 5 | 6 | 8 | 10 | 12 | 16 | 18 | twenty two | twenty four | ||||
| dk | Types A, B and C | maximum value | 12 | 14 | 18 | 20 | 25 | 32 | 40 | 45 | 50 | ||
| Type A | minimum | 10.9 | 12.9 | 16.9 | 18.7 | 23.7 | 30.4 | 38.4 | 43.4 | 48.4 | |||
| Type B and C | minimum | 11.57 | 13.57 | 17.57 | 19.48 | 24.48 | 31.38 | 39.38 | 44.38 | 49.38 | |||
| s | Type A | maximum value | 8 | 9 | 11 | 14 | 17 | 19 | twenty four | 28 | 30 | ||
| minimum | 7.52 | 8.52 | 10.3 | 13.3 | 16.3 | 18.16 | 23.16 | 27.16 | 29.16 | ||||
| Type B and C | maximum value | 6 | 7 | 9 | 12 | 14 | 17 | twenty two | 25 | 27 | |||
| minimum | 5.88 | 6.85 | 8.85 | 11.82 | 13.82 | 16.82 | 21.79 | 24.79 | 26.79 | ||||
| Thousand pieces of steel weight ≈kg | - | - | - | - | - | - | - | - | - | ||||
| thread length b | - | - | - | - | - | - | - | - | - | ||||
| Thread specification | (M27) | M30 | M30 | (M33) | M36 | M36 | (M39) | (M39) | |||||
| d | |||||||||||||
| P | pitch | 3 | 3.5 | 3.5 | 3.5 | 4 | 4 | 4 | 4 | ||||
| b | L≤125 | 60 | 66 | 66 | - | - | - | - | - | ||||
| 125＜L≤200 | 66 | 72 | 72 | 78 | 84 | 84 | 90 | 90 | |||||
| L＞200 | 79 | 85 | 85 | 91 | 97 | 97 | 103 | 103 | |||||
| d 1 | maximum value | 25.052 | 27.052 | 28.052 | 30.052 | 32.062 | 33.062 | 35.062 | 36.062 | ||||
| minimum | 25 | 27 | 28 | 30 | 32 | 33 | 35 | 36 | |||||
| dk | Types A, B and C | maximum value | 50 | 55 | 55 | 60 | 65 | 65 | 70 | 70 | |||
| Type A | minimum | 48.4 | 53.1 | 53.1 | 58.1 | 63.1 | 63.1 | 68.1 | 68.1 | ||||
| Type B and C | minimum | 49.38 | 54.26 | 54.26 | 59.26 | 64.26 | 64.26 | 69.26 | 69.26 | ||||
| s | Type A | maximum value | 30 | 34 | 34 | 38 | 41 | 41 | 46 | 46 | |||
| minimum | 29.16 | 33 | 33 | 37 | 40 | 40 | 45 | 45 | |||||
| Type B and C | maximum value | 27 | 30 | 30 | 34 | 38 | 38 | 41 | 41 | ||||
| minimum | 26.79 | 29.79 | 29.79 | 33.75 | 37.75 | 37.75 | 40.75 | 40.75 | |||||
| Thousand pieces of steel weight ≈kg | - | - | - | - | - | - | - | - | |||||
| thread length b | - | - | - | - | - | - | - | - | |||||
About Us
YONGYI Fasteners supports industrial and project fastener inquiries from Yongnian, Handan, China.
Our published company certificates, factory photographs, production information and selected supply references help buyers evaluate manufacturing and quality-control capabilities.
For a quotation, provide the product standard or drawing, size, material or grade, surface finish, quantity, packing requirement and destination.
Factory Introduction
Production Process
Packing and Shipping
Certificate
ISO 9001 Quality Management System Certificate (Chinese)
ISO 14001 Environmental Management System Certificate (English)
ISO 14001 Environmental Management System Certificate (Chinese)
ISO 45001 Occupational Health and Safety Management System Certificate (English)
ISO 45001 Occupational Health and Safety Management System Certificate (Chinese)
Exhibition/partner Photos
Welcome To Know Our Products
Get More Product Service Information
Follow us
We provide OEM and drawing-based fastener supply after the technical specification, quantity, packing and delivery requirements are confirmed.
