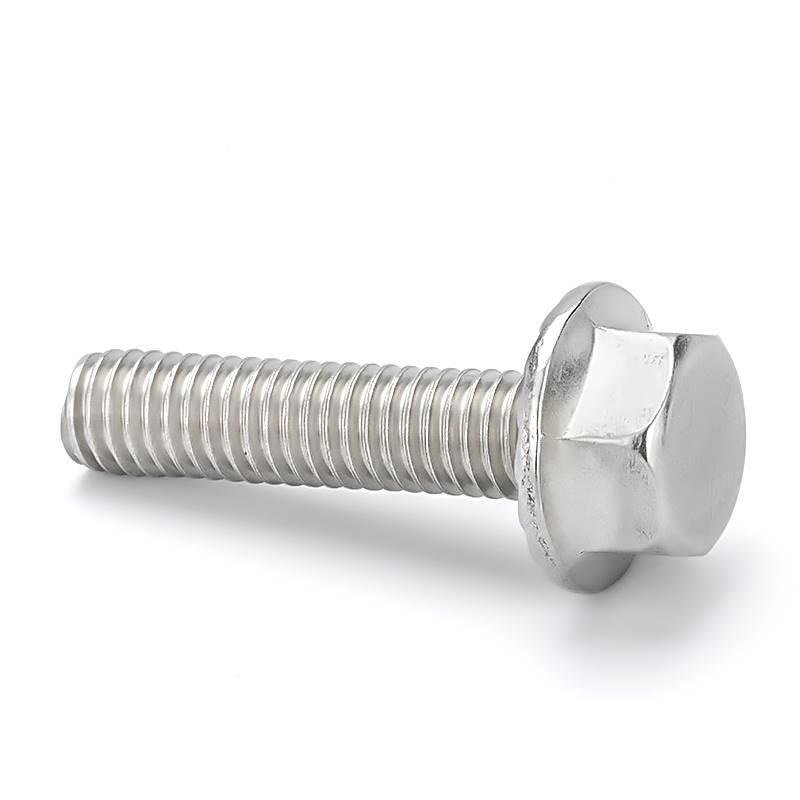

Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN 6921 Flange Bolts
-
High Strength Grade 4.8 8.8 10.9 12.9 Steel Yellow Zinc Plated DIN912 Allen Bolts
MOQ: Contact usPrice: Contact us -
High Strength Grade 4.8 8.8 10.9 12.9 Black Oxide DIN186 T Bolts
MOQ: Contact usPrice: Contact us -
High Strength Grade 4.8 8.8 10.9 12.9 Yellow Zinc Plated DIN603 Carriage Bolts
MOQ: Contact usPrice: Contact us -
High Strength Grade 4.8 8.8 10.9 12.9 Steel Black Oxide DIN580 Eye Bolts
MOQ: Contact usPrice: Contact us -
High Strength Grade 4.8 8.8 10.9 12.9 Steel Galvanized White Blue Zinc Plated DIN7984 Low Head Hex Socket Bolts
MOQ: Contact usPrice: Contact us -
High Strengh Grade 4.8 8.8 10.9 12.9 Galvanized Blue White Zinc Plated ISO7380 Button Head Hex Socket Bolts
MOQ: Contact usPrice: Contact us

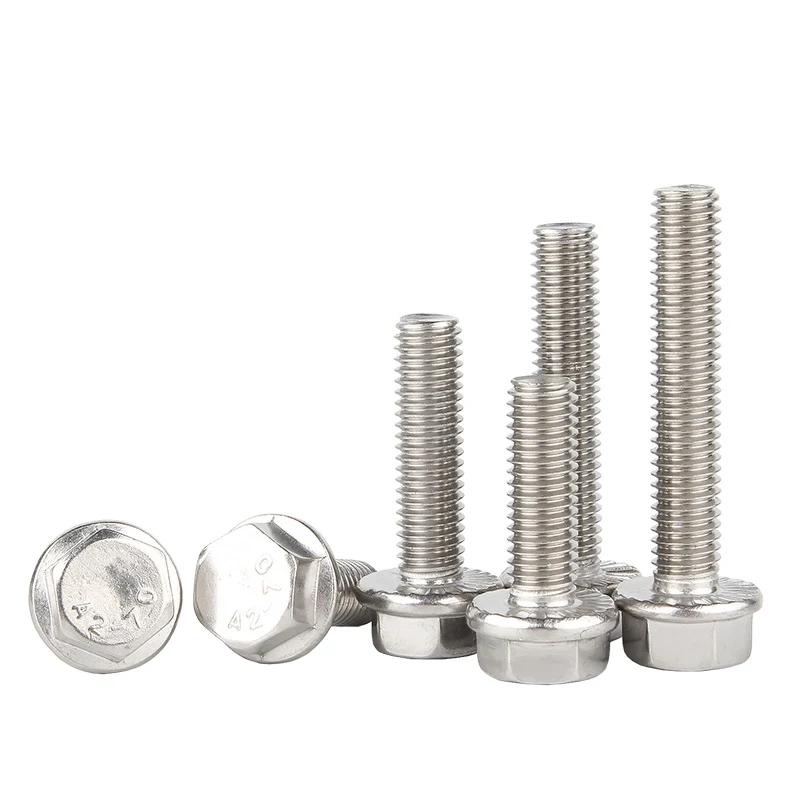

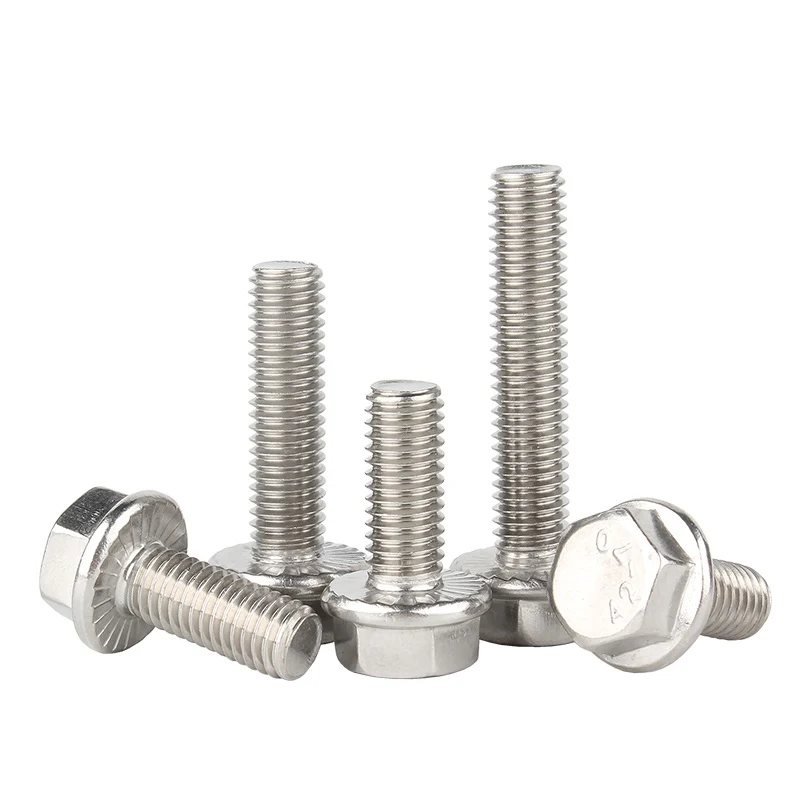

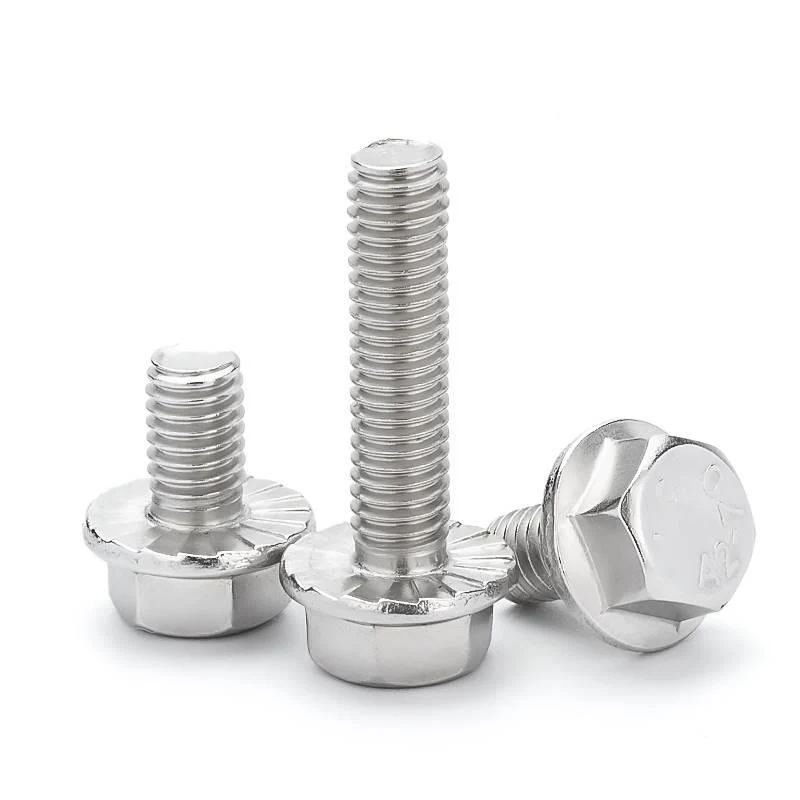

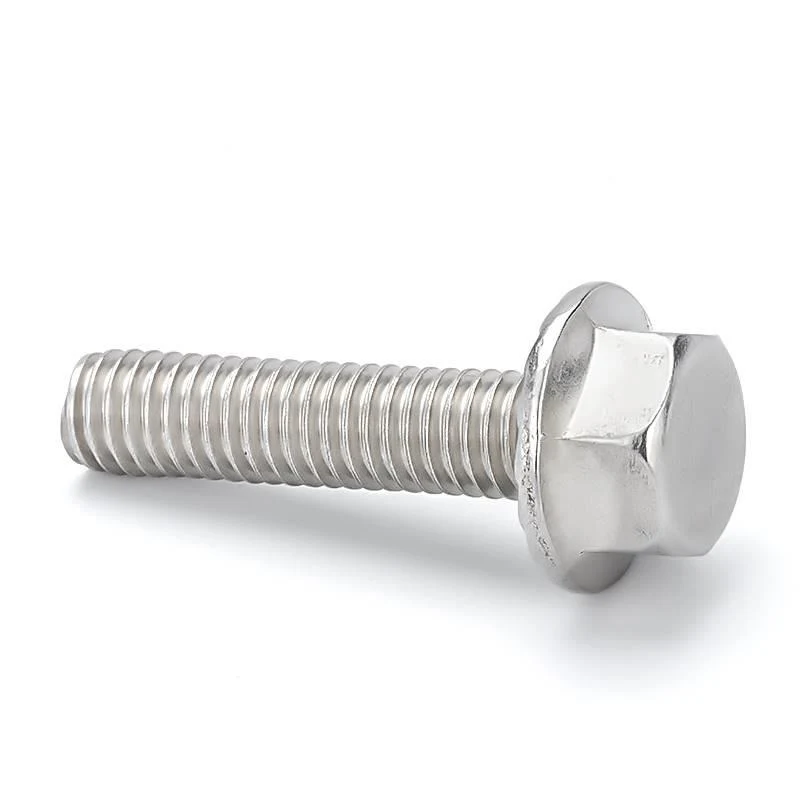

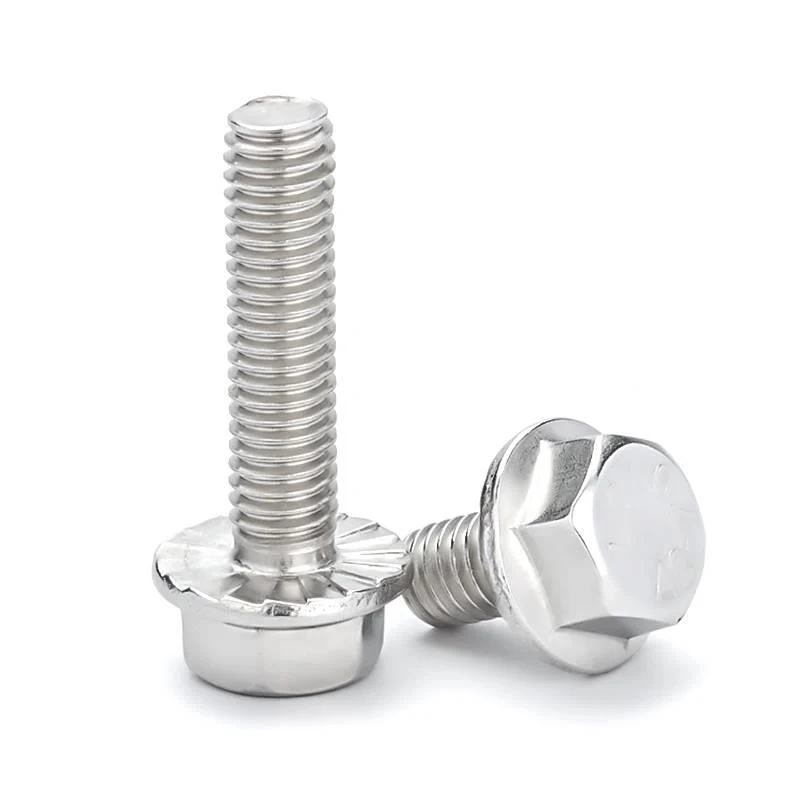

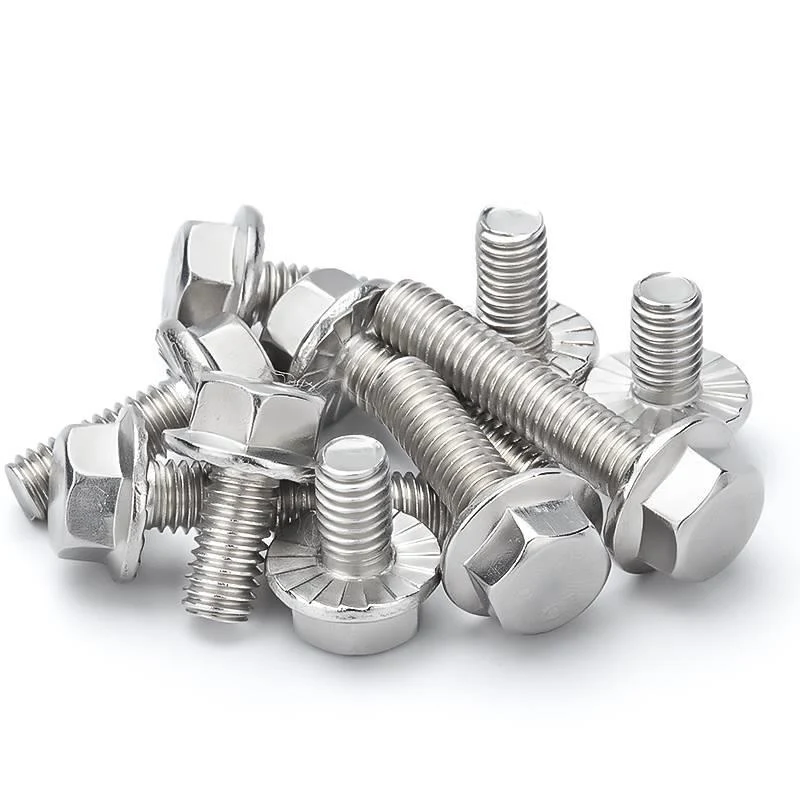

Product Photos and Information
| Name | Hex Flange Bolts |
| Standards | DIN ISO ANC BSW JIS etc. |
| Size | M3-M50 |
| Length | 15-500 |
| Materials | Carbon Steel/Stainless Steel |
| Strength level | 4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80 |
| Surface finish | ZPHDGBLACKDacromet etc. |
| Samples | Subject to availability and agreement |
Product Standards
| Hexagon head flange bolts DIN 6921 | ||||||||||||
| Thread specification | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | ||||
| d | ||||||||||||
| P | pitch | coarse teeth | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | ||
| fine teeth 1 | / | / | 1 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | ||||
| fine teeth 2 | / | / | / | 1 | 1.25 | / | / | / | ||||
| b | L≤125 | 16 | 18 | twenty two | 26 | 30 | 34 | 38 | 46 | |||
| 125＜L≤200 | / | / | 28 | 32 | 36 | 40 | 44 | 52 | ||||
| L＞200 | / | / | / | / | / | / | 57 | 65 | ||||
| c | minimum | 1 | 1.1 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 3 | |||
| d a | Type A | maximum value | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | 22.4 | ||
| Type B | maximum value | 6.2 | 7.4 | 10 | 12.6 | 15.2 | 17.7 | 20.7 | 25.7 | |||
| dc | maximum value | 11.8 | 14.2 | 18 | 22.3 | 26.6 | 30.5 | 35 | 43 | |||
| ds | maximum value | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | |||
| minimum | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 19.67 | ||||
| of u | maximum value | 5.5 | 6.6 | 9 | 11 | 13.5 | 15.5 | 17.5 | twenty two | |||
| dw | minimum | 9.8 | 12.2 | 15.8 | 19.6 | 23.8 | 27.6 | 31.9 | 39.9 | |||
| and | minimum | 8.71 | 10.95 | 14.26 | 16.5 | 17.62 | 19.86 | 23.15 | 29.87 | |||
| f | maximum value | 1.4 | 2 | 2 | 2 | 3 | 3 | 3 | 4 | |||
| k | maximum value | 5.4 | 6.6 | 8.1 | 9.2 | 11.5 | 12.8 | 14.4 | 17.1 | |||
| k 1 | minimum | 2 | 2.5 | 3.2 | 3.6 | 4.6 | 5.1 | 5.8 | 6.8 | |||
| r 1 | minimum | 0.25 | 0.4 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.8 | |||
| r 2 | maximum value | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.9 | 1 | 1.2 | |||
| r 3 | minimum | 0.1 | 0.1 | 0.15 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 | |||
| r 4 | ≈ | 3 | 3.4 | 4.3 | 4.3 | 6.4 | 6.4 | 6.4 | 8.5 | |||
| s | max = nominal | 8 | 10 | 13 | 15 | 16 | 18 | twenty one | 27 | |||
| minimum | 7.78 | 9.78 | 12.73 | 14.73 | 15.73 | 17.73 | 20.67 | 26.67 | ||||
| t | maximum value | 0.15 | 0.2 | 0.25 | 0.3 | 0.35 | 0.45 | 0.5 | 0.65 | |||
| minimum | 0.05 | 0.05 | 0.1 | 0.15 | 0.15 | 0.2 | 0.25 | 0.3 | ||||
| thread length b | - | - | - | - | - | - | - | - | ||||
