High Strength Grade 4 8 10 12 Steel Galvanized Blue White Zinc Plated DIN 577 Square Nuts

Name: High Strength Grade 4 8 10 12 Steel Galvanized Blue White Zinc Plated DIN 577 Square Nuts
Brand: YONGYI

Moq :

1 Ton

Price: Quoted to specification, quantity, coating, packing and Incoterm

Package: Bags, boxes, cartons, pallets or customer-specified export packing

Export port: Tianjin, Qingdao or Shanghai, as confirmed in the quotation

Delivery date: Confirmed after specification, quantity and production review

Payment method: T/T or other terms stated in the official PI or contract

Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN577 Square Nuts

MOQ: Contact us

Price: Contact us

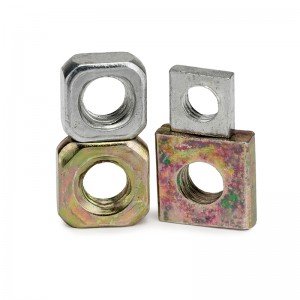

High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated DIN577 Square Nuts

MOQ: Contact us

Price: Contact us

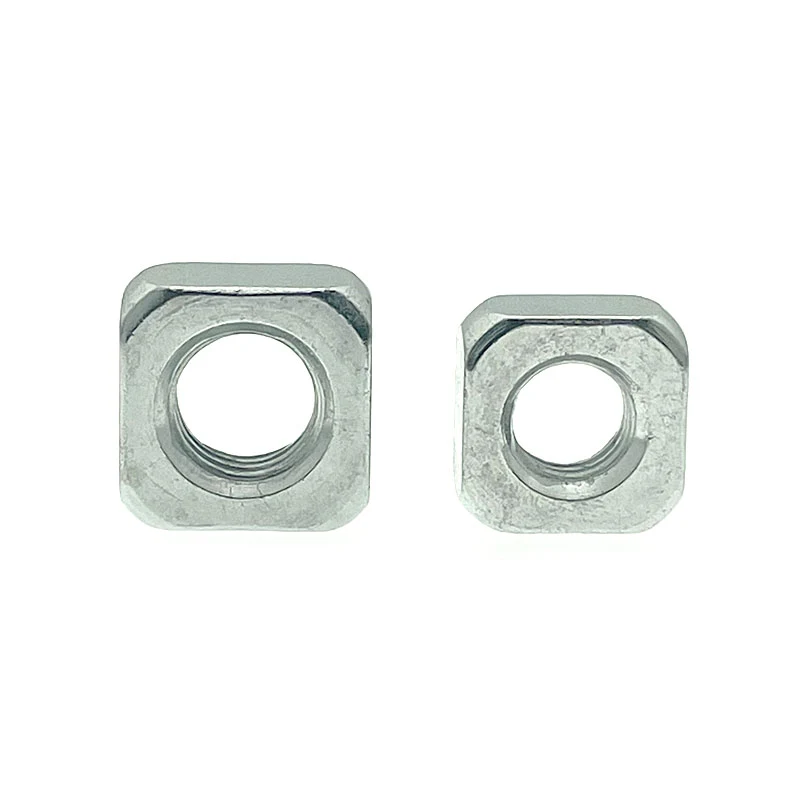

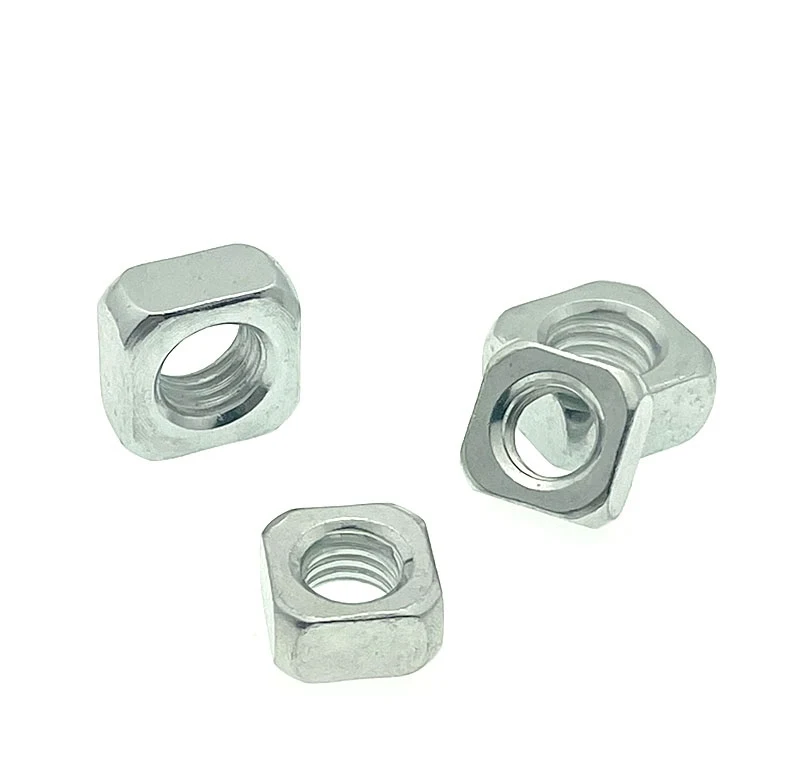

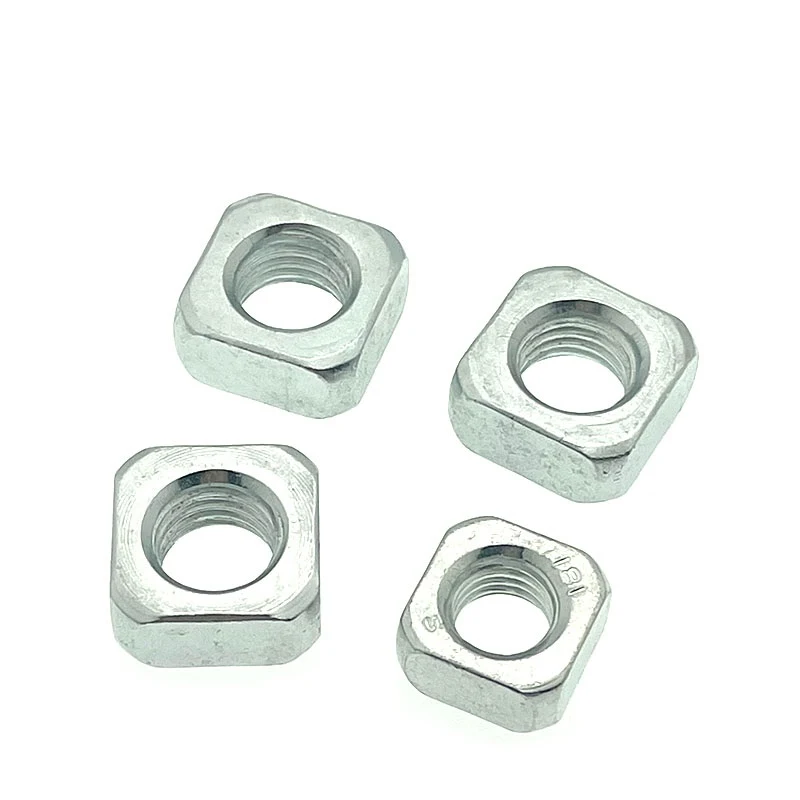

Product Photos and Information

Name	Square Nuts
Standards	DIN ISO ANC BSW JIS etc.
Size	M3-M50
Length	15-500
Materials	Carbon Steel/Stainless Steel
Strength level	4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80
Surface finish	ZPHDGBLACKDacromet etc.
Samples	Subject to availability and agreement

Product Standards

Square Nuts DIN 557
thread size		M5	M6	M8	M10 ①	M10	M12 ①	M12	M16	M20
d		M5	M6	M8	M10 ①	M10	M12 ①	M12	M16	M20
P	Pitch (coarse)	0.8	1	1.25	1.5	1.5	1.75	1.75	2	2.5
d_w	minimum	6.7	8.7	11.5	14.5	15.5	16.5	17.2	twenty two	27.7
and	≈	11.3	14.1	18.4	22.6	twenty four	25.4	26.9	33.9	42.4
m	Nominal	4	5	6.5	8	8	10	10	13	16
	maximum value	4.6	5.6	7.25	8.75	8.75	10.75	10.75	13.9	16.9
	minimum	3.4	4.4	5.75	7.25	7.25	9.25	9.25	12.1	15.1
m ₁	minimum	2.4	3.1	4	5.1	5.1	6.4	6.4	8.5	10.6
s	maximum value	8	10	13	16	17	18	19	twenty four	30
s	minimum	7.64	9.64	12.57	15.57	16.57	17.57	18.48	23.16	29.16
Thousand pieces (steel)≈kg		1.31	2.77	5.5	10.7	13	16.3	19.1	38.2	73.5
①,If M10 and M12 nuts are required to be supplied according to ISO 272 with a width of 16mm and 18mm, the width across the flat (SW) should be added to the label.

About Us

YONGYI Fasteners supports industrial and project fastener inquiries from Yongnian, Handan, China.

Our published company certificates, factory photographs, production information and selected supply references help buyers evaluate manufacturing and quality-control capabilities.

For a quotation, provide the product standard or drawing, size, material or grade, surface finish, quantity, packing requirement and destination.
