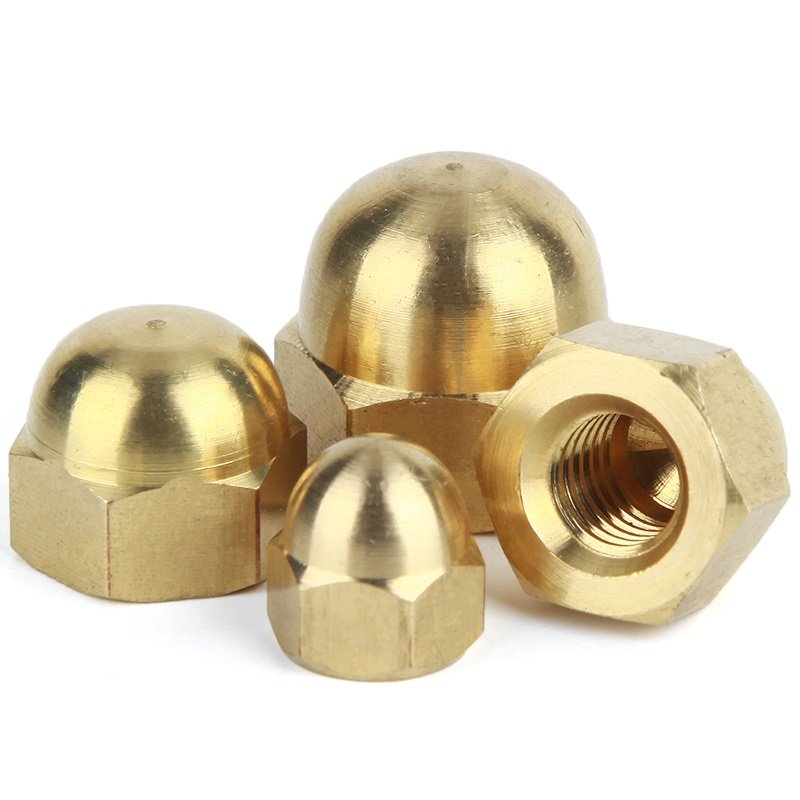

Copper Brass DIN 1587 Cap Nuts

Name: Copper Brass DIN 1587 Cap Nuts
Brand: YONGYI

Moq: Confirmed by product, size, grade, finish and quantity

Price: Quoted to specification, quantity, coating, packing and Incoterm

Package: Bags, boxes, cartons, pallets or customer-specified export packing

Export port: Tianjin, Qingdao or Shanghai, as confirmed in the quotation

Delivery date: Confirmed after specification, quantity and production review

Payment method: T/T or other terms stated in the official PI or contract

Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN1587 Cap Nuts

MOQ: Contact us

Price: Contact us
High Strength Grade 4 8 10 12 Steel Galvanized Blue White Zinc Plated DIN1587 Cap Nuts

MOQ: Contact us

Price: Contact us
High Strength Grade 4 8 10 12 Steel Black Oxide DIN1587 Cap Nuts

MOQ: Contact us

Price: Contact us

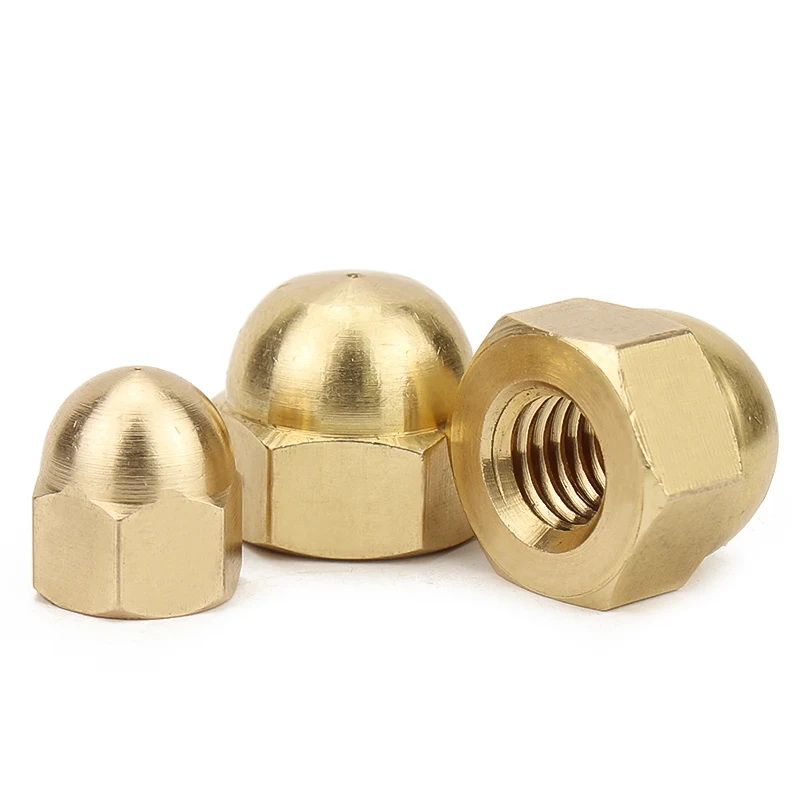

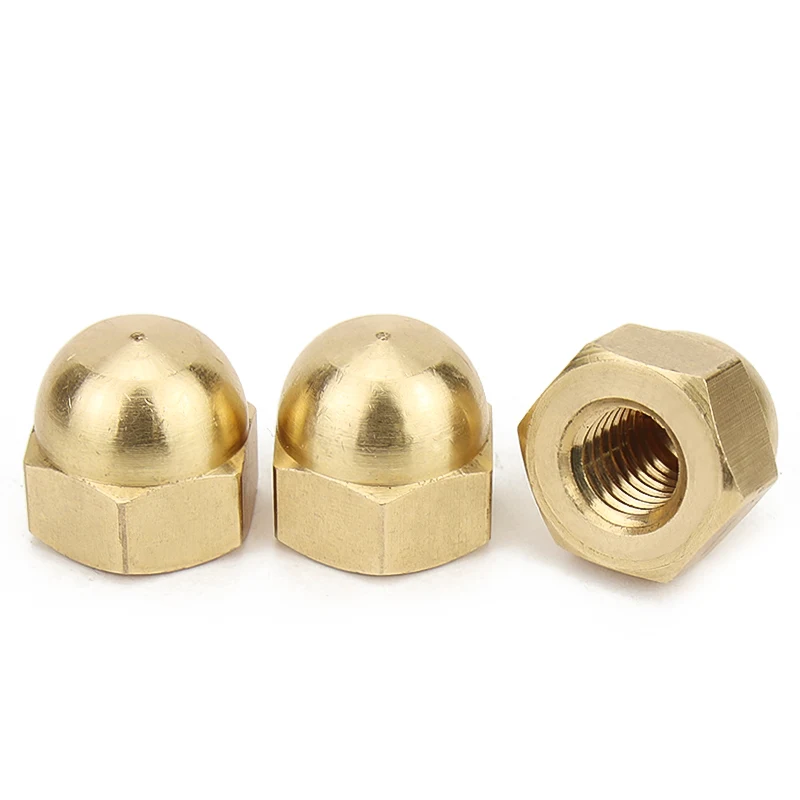

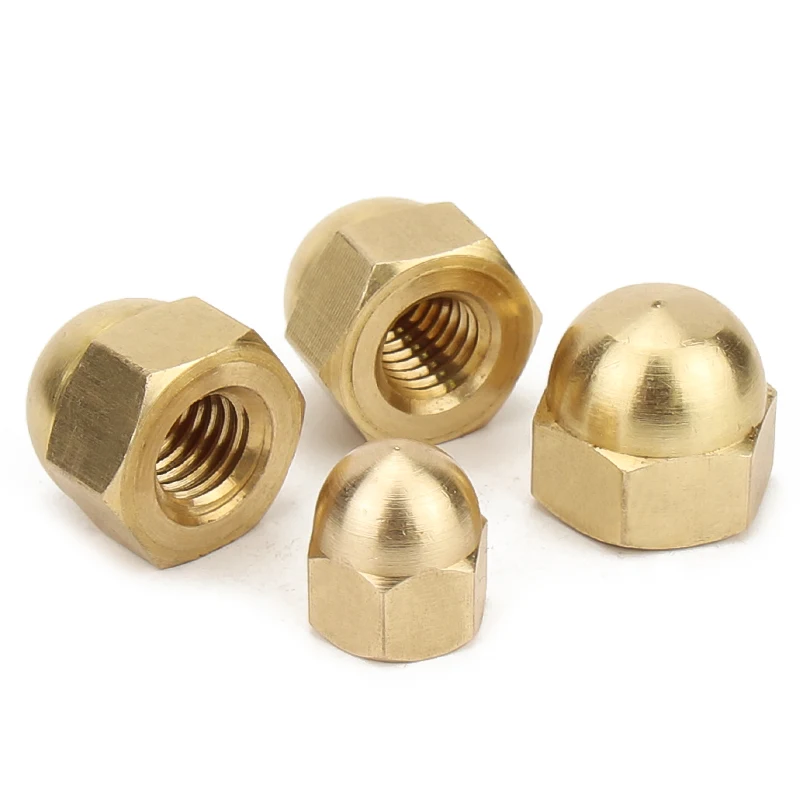

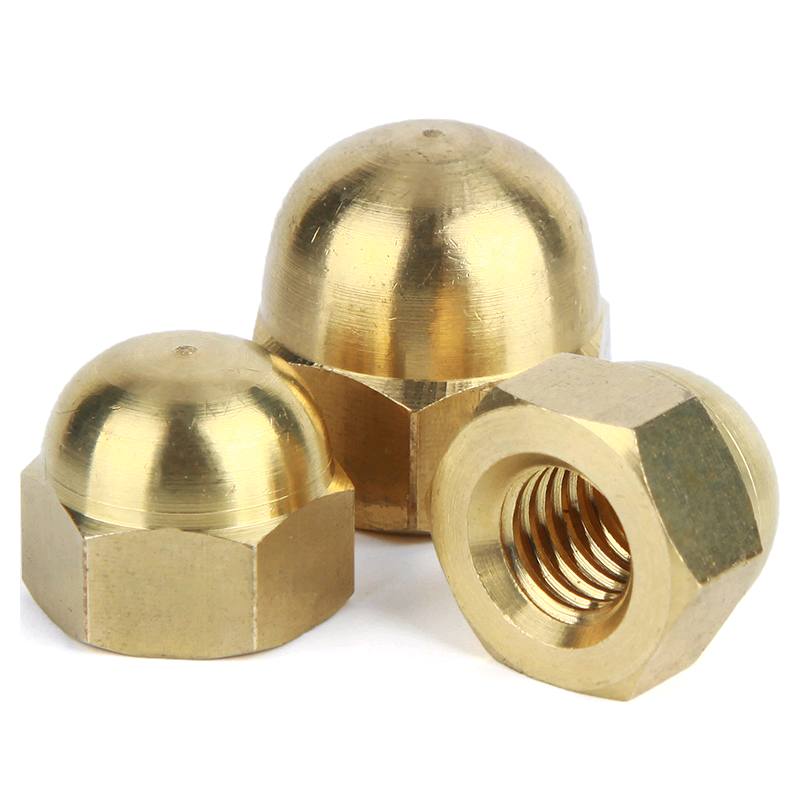

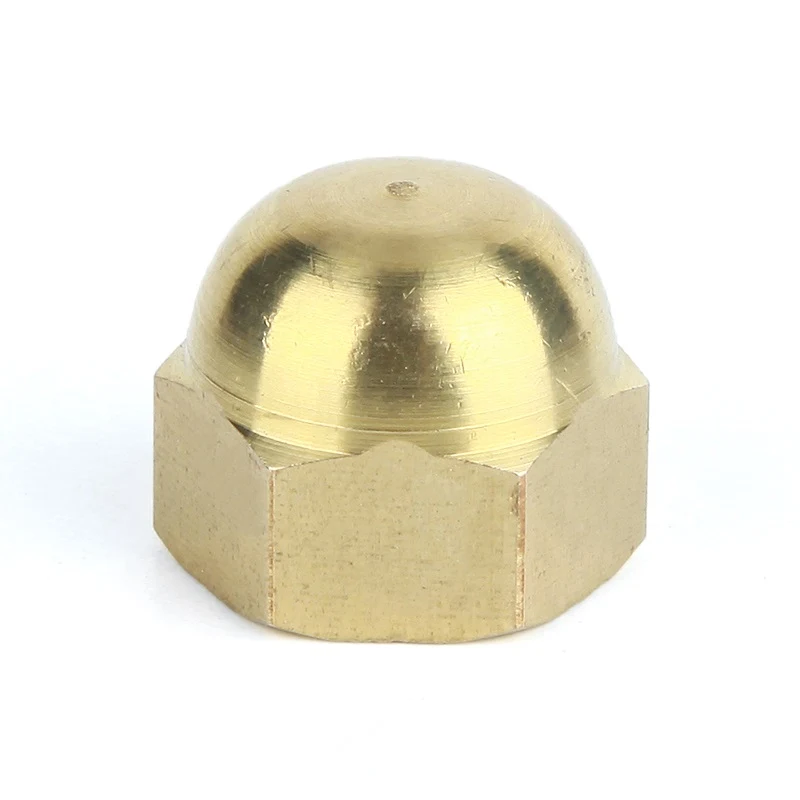

Product Photos and Information

Name	Cap Nuts
Standards	DIN ISO ANC BSW JIS etc.
Size	M3-M36
Length	10-32
Materials	Carbon Steel/Stainless Steel
Strength level	4 5 8 10 12 A2-70 A4-70 A4-80 etc.
Surface finish	ZPHDGBLACKDacromet etc.
Samples	Subject to availability and agreement

Product Standards

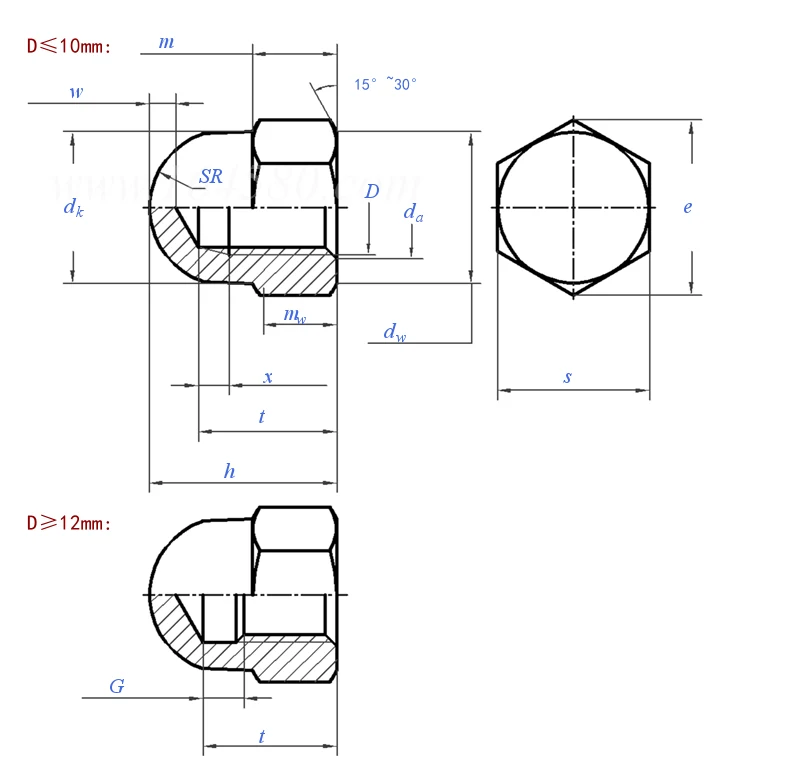

Hexagon cap nuts DIN 1587
thread size			M4	M5	M6	M8	M10	M10	M12	M12
d			M4	M5	M6	M8	M10	M10	M12	M12
P	Series 1	coarse teeth	0.7	0.8	1	1.25	1.5	1.5	1.75	1.75
	Series 2	fine teeth	/	/	/	1	1	1	1.5	1.5
	Series 3	fine teeth	/	/	/	/	1.25	1.25	1.25	1.25
d a	minimum		4	5	6	8	10	10	12	12
d a	maximum value		4.6	5.75	6.75	8.75	10.8	10.8	13	13
dk	maximum value		6.5	7.5	9.5	12.5	16	15	18	17
dw	minimum		5.8	6.8	8.3	11.3	15.3	14.3	17.2	16.2
and	minimum	Class A	7.66	8.79	11.05	14.38	18.9	17.77	21.1	20.03
and	minimum	Class B	7.5	8.63	10.89	14.2	18.72	17.59	20.88	19.85
x	maximum value	Series 1	1.4	1.6	2	2.5	3	3	/	/
		Series 2	/	/	/	2	2	2	/	/
		Series 3	/	/	/	/	2.5	2.5	/	/
G	maximum value	Series 1	/	/	/	/	/	/	6.4	6.4
		Series 2	/	/	/	/	/	/	5.6	5.6
		Series 3	/	/	/	/	/	/	4.9	4.9
h	max = nominal		8	10	12	15	18	18	twenty two	twenty two
	minimum	Class A	7.64	9.64	11.57	14.57	17.57	17.57	21.48	21.48
	minimum	Class B	7.42	9.42	11.3	14.3	17.3	17.3	21.16	21.16
m	maximum value		3.2	4	5	6.5	8	8	10	10
m	minimum		2.9	3.7	4.7	6.14	7.64	7.64	9.64	9.64
mw	minimum		2.32	2.96	3.76	4.91	6.11	6.11	7.71	7.71
SR	≈		3.25	3.75	4.75	6.25	8	7.5	9	8.5
s	max = nominal		7	8	10	13	17	16	19	18
	minimum	Class A	6.78	7.78	9.78	12.73	16.73	15.73	18.67	17.73
	minimum	Class B	6.64	7.64	9.64	12.57	16.57	15.57	18.48	17.57
t	minimum		5.26	7.21	7.71	10.65	12.65	12.65	15.65	15.65
t	maximum value		5.74	7.79	8.29	11.35	13.35	13.35	16.35	16.35
in	minimum		2	2	2	2	2	2	3	3
1000 pieces weight kg			/	/	4.66	11	20.1	/	28.3	/
thread size			(M14)	M14	M16	(M18)	M20	(M22)	(M22)	M24
d			(M14)	M14	M16	(M18)	M20	(M22)	(M22)	M24
P	Series 1	coarse teeth	2	2	2	2.5	2.5	2.5	2.5	3
	Series 2	fine teeth	1.5	1.5	1.5	1.5	2	2	1.5	2
	Series 3	fine teeth	/	/	/	2	1.5	1.5	2	/
d a	minimum		14	14	16	18	20	twenty two	twenty two	twenty four
d a	maximum value		15.1	15.1	17.3	19.5	21.6	23.7	23.7	25.9
dk	maximum value		twenty one	20	twenty three	26	28	31	33	34
dw	minimum		20.2	19.2	22.2	25.3	28.3	29.5	31.4	33.2
and	minimum	Class A	24.49	23.35	26.75	30.14	33.53	35.72	37.72	39.98
and	minimum	Class B	23.91	22.78	26.17	29.56	32.95	35.03	37.29	39.55
x	maximum value	Series 1	/	/	/	/	/	/	/	/
		Series 2	/	/	/	/	/	/	/	/
		Series 3	/	/	/	/	/	/	/	/
G	maximum value	Series 1	7.3	7.3	7.3	9.3	9.3	9.3	9.3	10.7
		Series 2	5.6	5.6	5.6	5.6	7.3	5.6	5.6	7.3
		Series 3	/	/	/	7.3	5.6	7.3	7.3	/
h	max = nominal		25	25	28	32	34	39	39	42
	minimum	Class A	24.48	24.48	27.48	31.38	33.38	38.38	38.38	41.38
	minimum	Class B	24.16	24.16	27.16	31	33	38	38	41
m	maximum value		11	11	13	15	16	18	18	19
m	minimum		10.3	10.3	12.3	14.3	14.9	16.9	16.9	17.7
mw	minimum		8.24	8.24	9.84	11.44	11.92	13.52	13.52	14.16
SR	≈		10.5	10	11.5	13	14	15.5	16.5	17
s	max = nominal		twenty two	twenty one	twenty four	27	30	32	34	36
	minimum	Class A	21.67	20.67	23.67	26.67	29.67	31.61	33.38	35.38
	minimum	Class B	21.16	20.16	23.16	26.16	29.16	31	33	35
t	minimum		17.65	17.65	20.58	24.58	25.58	28.58	28.58	30.5
t	maximum value		18.35	18.35	21.42	25.42	26.42	29.42	29.42	31.5
in	minimum		4	4	4	5	5	5	5	6
1000 pieces weight kg			57.2	/	54.3	95	104	129	/	216

About Us

YONGYI Fasteners supports industrial and project fastener inquiries from Yongnian, Handan, China.

Our published company certificates, factory photographs, production information and selected supply references help buyers evaluate manufacturing and quality-control capabilities.

For a quotation, provide the product standard or drawing, size, material or grade, surface finish, quantity, packing requirement and destination.
