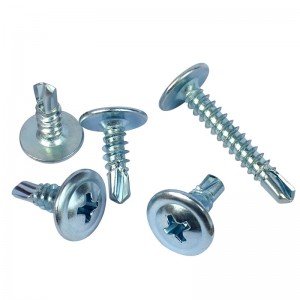

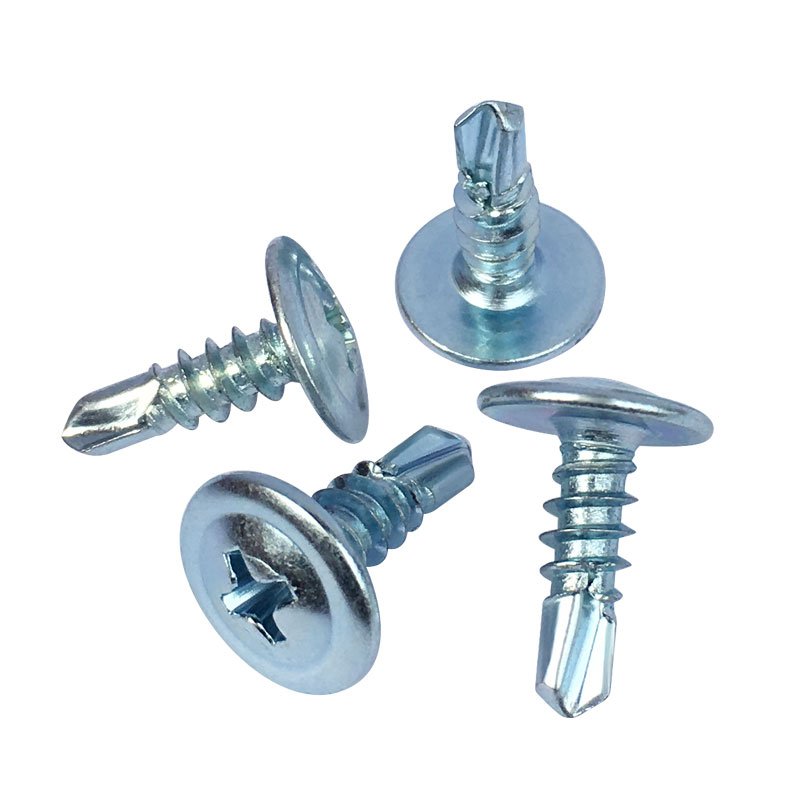

304 stainless steel thin flat head cross recessed tapping screw Cross drilling screw
-
High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated DIN7340 Rivet Nuts
MOQ: Contact usPrice: Contact us -
Rivet bolts Φ3.2-Φ6.4 Closed-end flat round head blind rivets
MOQ: Contact usPrice: Contact us -
304 stainless steel inner expansion screw carbon steel Implosion gecko bolt
MOQ: Contact usPrice: Contact us -
High Strength Grade 4 8 10 12 Steel Galvanized Blue White Zinc Plated DIN935 Castle Nuts
MOQ: Contact usPrice: Contact us -
Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN444 Eye Bolts
MOQ: Contact usPrice: Contact us -
304 stainless steel tapping screw cross head screw cross Round head Half round head bolt
MOQ: Contact usPrice: Contact us

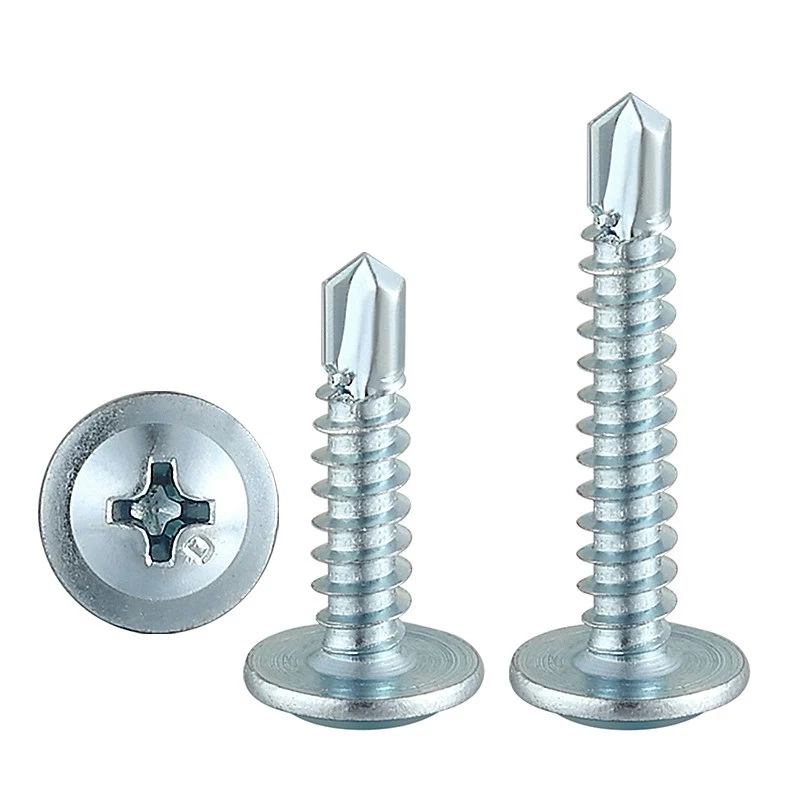

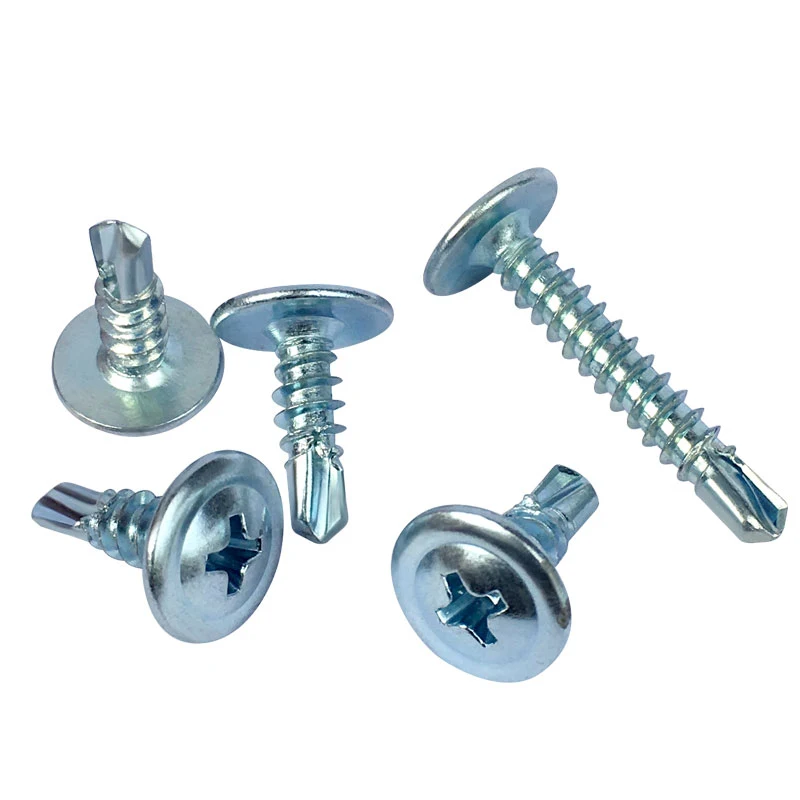

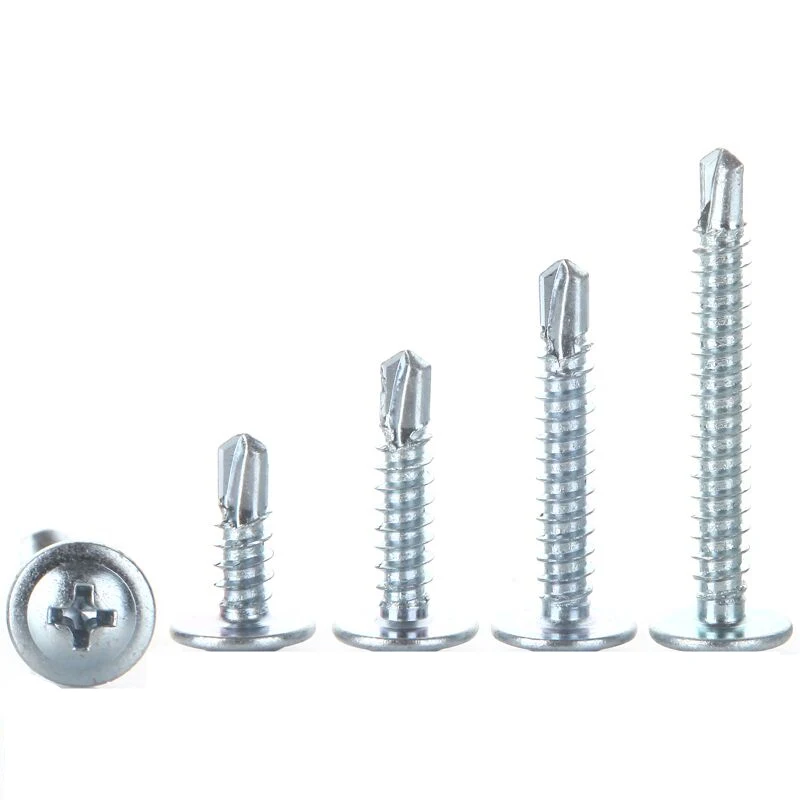

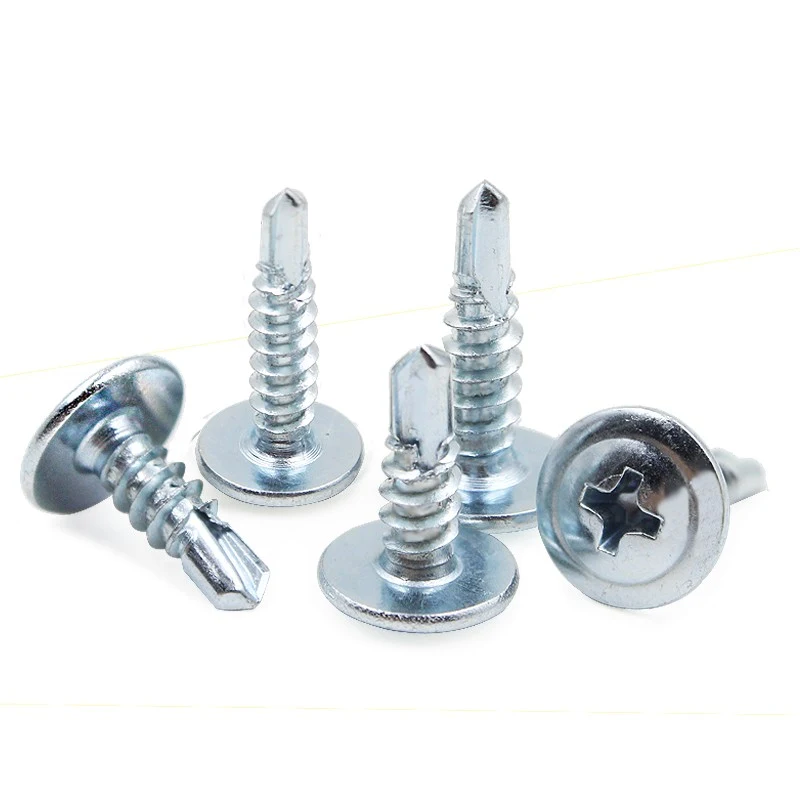

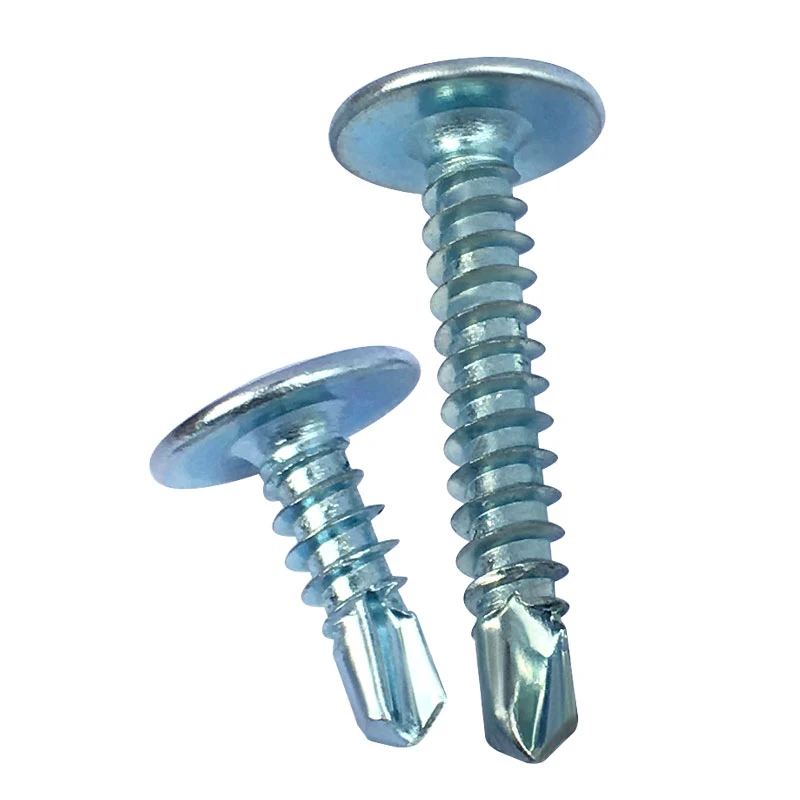

Product Photos and Information
| Name | Self drilling Screws | Materials | Carbon Steel/Stainless Steel |
| Standards | DIN ISO ANC BSW JIS etc. | Strength level | 8.8 etc. |
| Size | M1.5-M6 | Surface finish | ZPBLACK etc. |
| Length | 10-100 | Samples | Subject to availability and agreement |
Product Standards

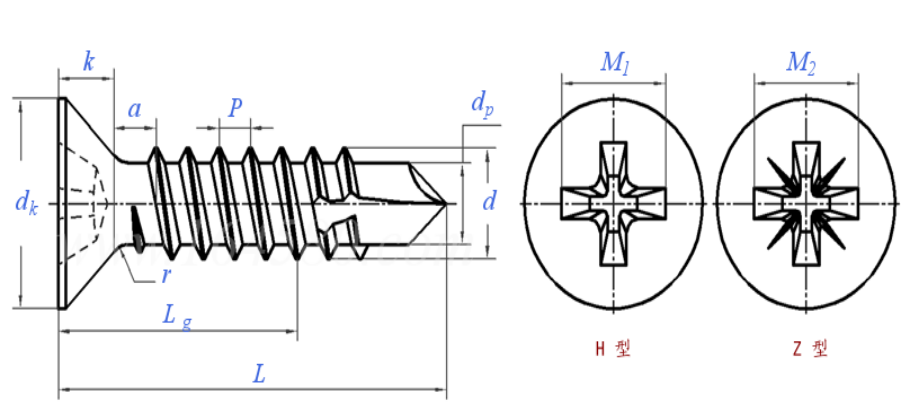

| Cross recessed countersunk head self-tapping self-drilling screws DIN 7504 | ||||||||
| Thread specification | ST2.9 | ST3.5 | ST4.2 | ST4.8 | ST5.5 | ST6.3 | ||
| P | pitch | 1.1 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 | |
| a | maximum value | 1.1 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 | |
| dk | maximum value | 5.5 | 7.3 | 8.4 | 9.3 | 10.3 | 11.3 | |
| minimum | 5.2 | 6.9 | 8 | 8.9 | 9.9 | 10.9 | ||
| k | maximum value | 1.7 | 2.35 | 2.6 | 2.8 | 3 | 3.15 | |
| r | maximum value | 1.2 | 1.4 | 1.6 | 2 | 2.2 | 2.4 | |
| slot number | 1 | 2 | 2 | 2 | 3 | 3 | ||
| M1 _ | 3.2 | 4.4 | 4.6 | 5.2 | 6.6 | 6.8 | ||
| M 2 | 3.2 | 4.3 | 4.6 | 5.1 | 6.5 | 6.8 | ||
| dp | 2.3 | 2.8 | 3.6 | 4.1 | 4.8 | 5.8 | ||
| Drilling range (plate thickness) | 0.7~1.9 | 0.7~2.25 | 1.75~3 | 1.75~4.4 | 1.75~5.25 | 2~6 | ||
| Lg (minimum) | - | - | - | - | - | - | ||
