Custom M6-M24 Wedge Metal Anchor Bolts, Steel Zinc Plated Wall Anchor Bolts

Name: Custom M6-M24 Wedge Metal Anchor Bolts, Steel Zinc Plated Wall Anchor Bolts
Brand: YONGYI

Category:

Products

Sleeve Anchor

Email:

sales@yyfasteners.com

Get Quote

Related products

Commodity name： Custom M6-M24 Wedge Metal Anchor Bolts , Steel Zinc Plated Wall Anchor Bolts
Commodity ID： 1022437131131117568

Product Description

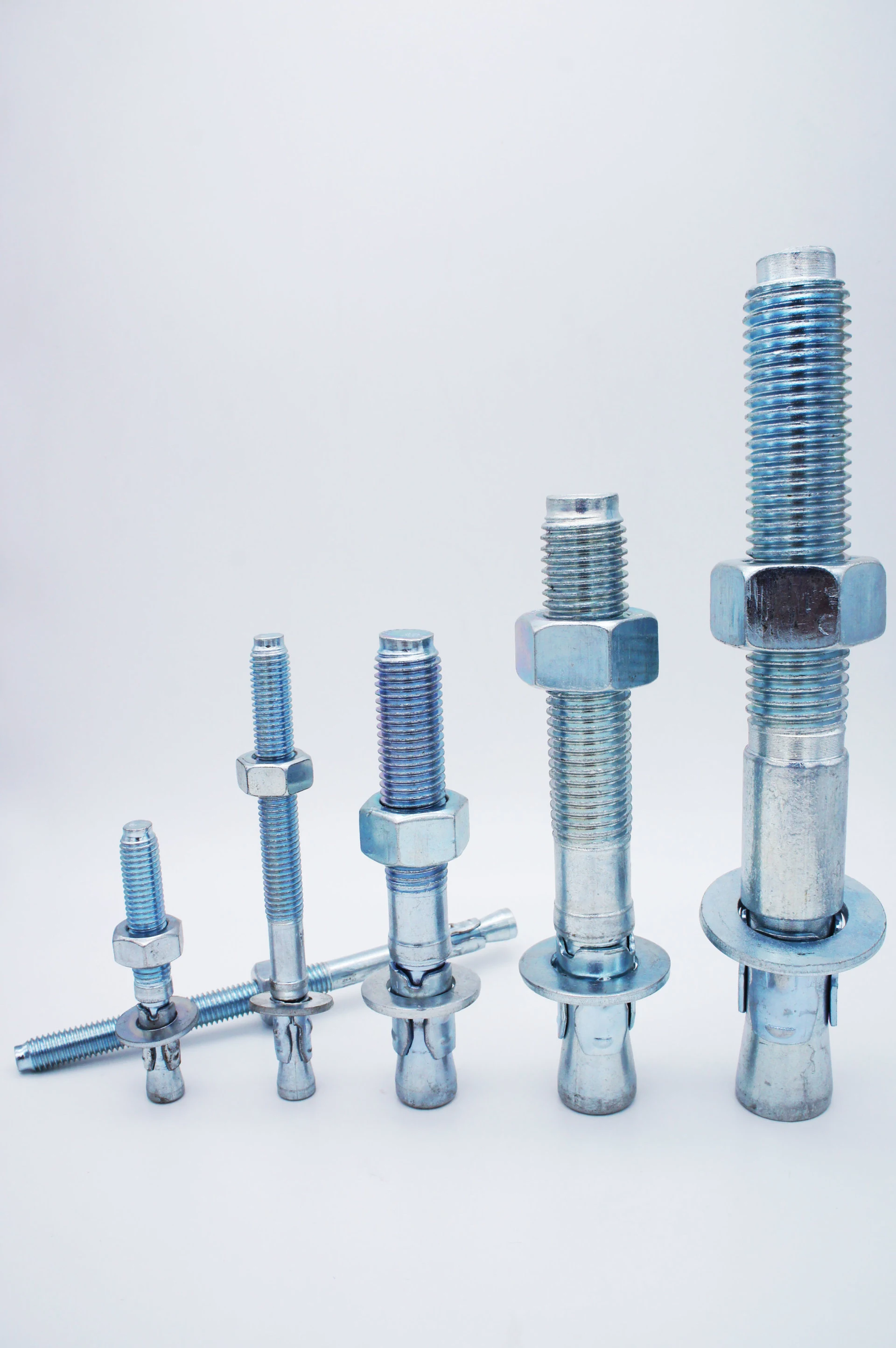

Custom M6-M24 Wedge Metal Anchor Bolts , Steel Zinc Plated Wall Anchor Bolts image

Produts Description

The wedge anchor bolts, concrete cavity depth and no higher cleanliness requirements, easy to install and inexpensive. Jacking by selecting the appropriate thickness of the buried depth, with the increase of buried depth, tension increased after the products are reliable and expandable functionality. Body material: stainless steel, carbon steel and other metal materials. Also known as through bolts, expansion bolts and expansion anchors, which is designed for consistent performance in concrete. There has three kinds of wedge anchors: fully threaded, partial threaded and the full-bodied wedge anchor. Wedge anchor can be hammered below the surface of the concrete while no longer needed. Anchor diameter equals drill hole size. The expansion clip is formed around anchor, providing full expansion for dependable,superior supporting power. Expanding clip will not fall off or twist in the hole. Each wedge anchor has a minimum embedment requirement. The anchor diameteris the same as the drill hole size. Widely used in securing the through objects' fastening, such as equipment,channel steel, guide rail, holder, steel structure, escalator, handrail and curtain wall etc. Every wedge anchor can be suitable for the standard anchorage depth, and also fit for shallow mining depth, to provide supreme flexibility for installation. Moreover the long thread offering the spacing installaiton, and can be flexibly adjustable to easy the installation.

Specification

Size	Amount in one box	Weight(g)
M6*50	2400	13.8
M6*80	1600	16.4
M6*120	1200	23.2
M8*50	1200	22.7
M8*75	800	30.51
M8*100	720	37.96
M8*150	480	53
M10*60	640	44.1
M10*75	560	50.6
M10*90	480	57.7
M10*100	440	62.33
M10*120	424	66.8
M10*130	384	76.04
M10*150	320	85.1
M12*75	420	71
M12*100	320	90.58
M12*120	288	105.35
M12*140	240	119.35
M12*160	200	133.5
M12*200	160	161.35
M16*100	200	165.16
M16*120	160	191.06
M16*140	120	213.36
M16*150	120	231.36
M16*180	90	268.56
M16*220	80	322
M16*150	60	357
M16*300	48	414.38
M20*140	88	355.56
M20*160	80	394.62
M20*200	60	477.56
M20*220	60	512.58
M20*260	40	589.78
M24*150	30	600
M24*200	30	750
M24*250	20	1000
M24*300	20	1200

Ordering and Documentation

Confirm the product standard or drawing, thread and dimensions, material or property class, surface finish, quantity, packing and destination before quotation.

Required inspection, material, mechanical-property, coating and packing documents must be listed in the inquiry. Availability, lead time and commercial terms are confirmed for the specific order.

Send YONGYI your purchase list or drawing.

Key word:
- bolts
- Wedge Anchor
- Metal Anchor Bolts
- Anchor Bolts
- Anchor

Get Quote

NOTE: Please leave your email, our professional person will contact you asap!

SUBMIT

Custom M6-M24 Wedge Metal Anchor Bolts, Steel Zinc Plated Wall Anchor Bolts Specifications

Product FamilyAnchors

StandardConfirm by drawing or purchase specification

MaterialMaterial to be confirmed with the order

FinishZinc plated / galvanized

YONGYI supplies Custom M6-M24 Wedge Metal Anchor Bolts, Steel Zinc Plated Wall Anchor Bolts for industrial, OEM and project purchasing. This page identifies the requested product family, standard, material, grade and finish so buyers can compare it with their drawing, bill of materials or technical specification.

Standard designations are common market references. Final dimensions, tolerances, mechanical properties, coating requirements and thread fit are confirmed in the quotation or approved drawing before production.

Product	Custom M6-M24 Wedge Metal Anchor Bolts, Steel Zinc Plated Wall Anchor Bolts
Category	Anchors / Anchors
Referenced Standard	Confirm by drawing or purchase specification
Size / Thread	M6-M24
Material	Material to be confirmed with the order
Grade / Property	Mechanical property requirement to be confirmed
Surface Finish	Zinc plated / galvanized
Packaging	Carton, bag, pallet or project-specific export packing after quantity and unit weight are confirmed.

Typical Applications

Concrete and masonry fixing after the anchor type, base material and design load are confirmed
Equipment bases, brackets, handrails and construction assemblies
Project supply requiring controlled dimensions, coating and matched accessories

Information Required for an Accurate Quote

Nominal diameter, thread system, pitch and length where applicable
Required standard, material and property class or hardness
Surface finish, coating standard and any thickness or corrosion requirement
Order quantity, packing method, destination and required supporting documents

Quality and Order Documentation

Depending on the agreed order and available production records, documentation may include an approved drawing, dimensional inspection, material or mechanical-property report, coating report, packing list and shipment photos. Required documents must be stated before quotation.

FAQ

Can this product be supplied to a drawing?	Drawing-based and sample-based requirements can be reviewed. Feasibility, tolerances, tooling, MOQ and lead time are confirmed after technical review.
How should I request an alternative standard?	Send the original specification and identify any acceptable alternative. YONGYI will list confirmed compliance and any technical deviation separately.
Can coating and test documents be included?	Yes, when agreed before order. State the coating specification, test scope, inspection party and document format in the inquiry.
