HOT PRODUCTS

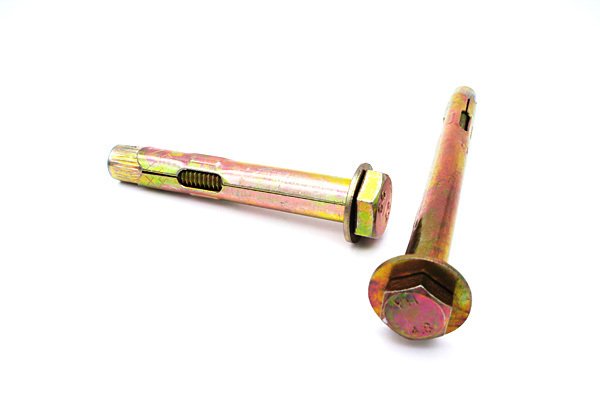

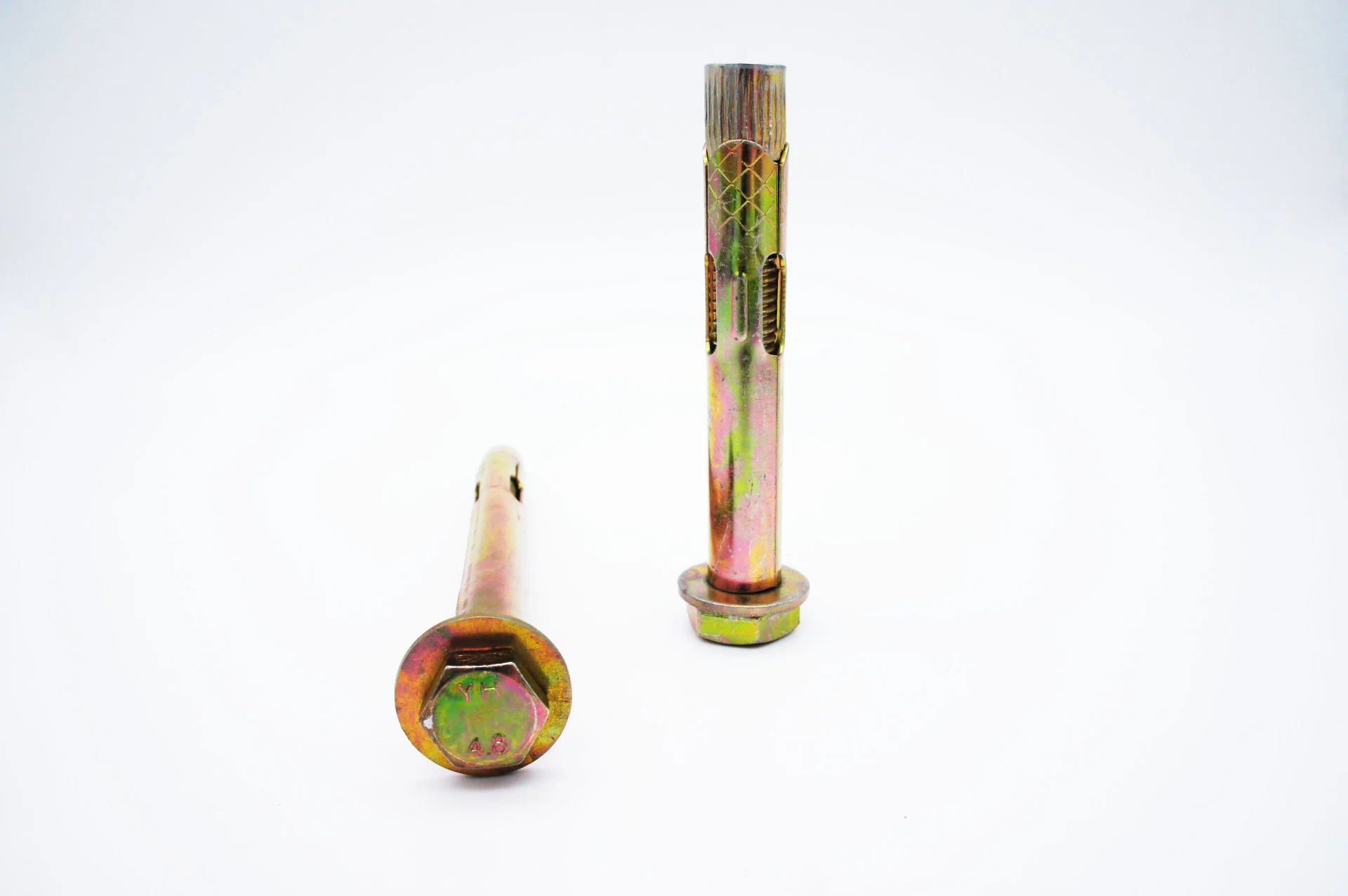

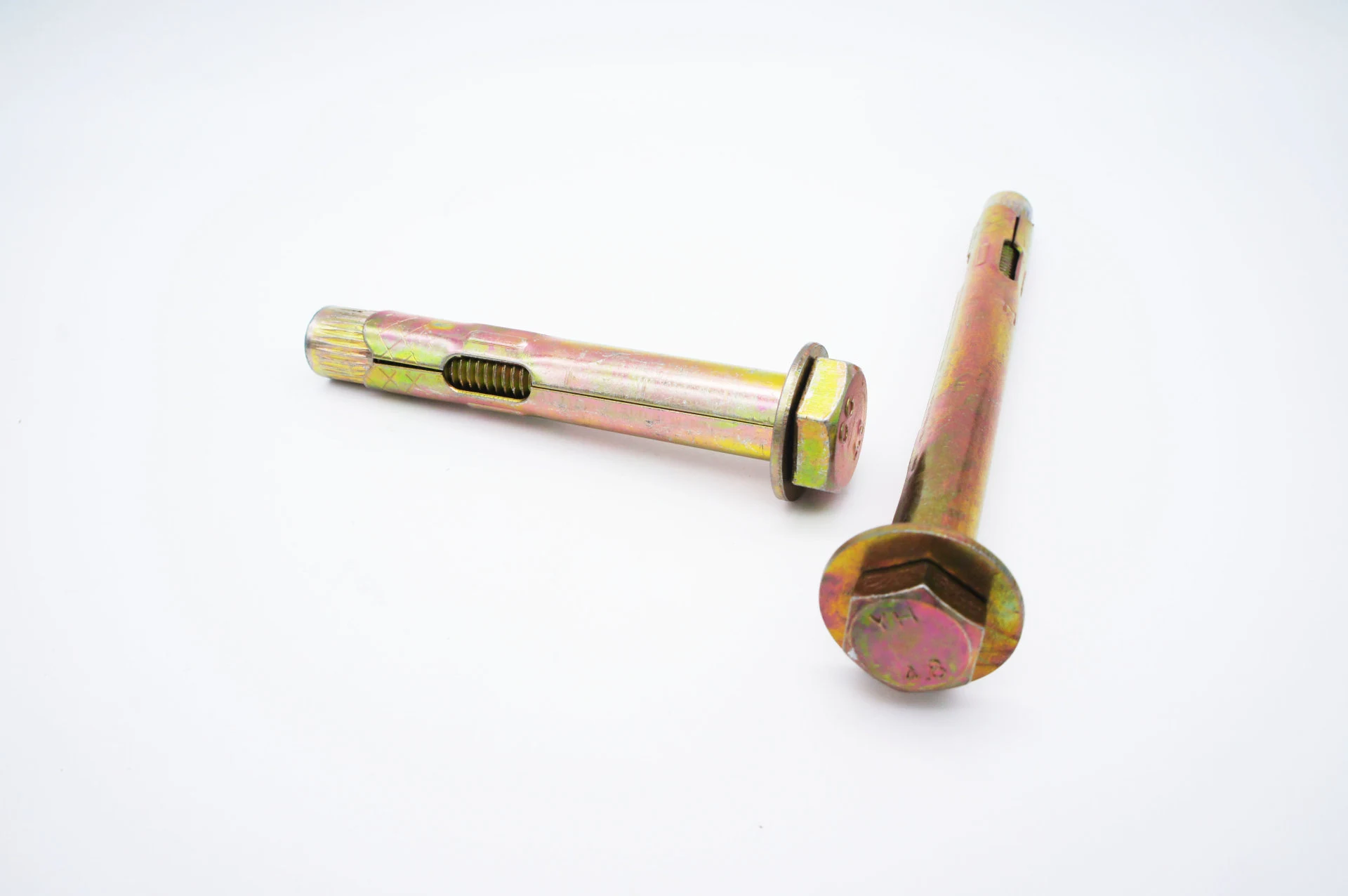

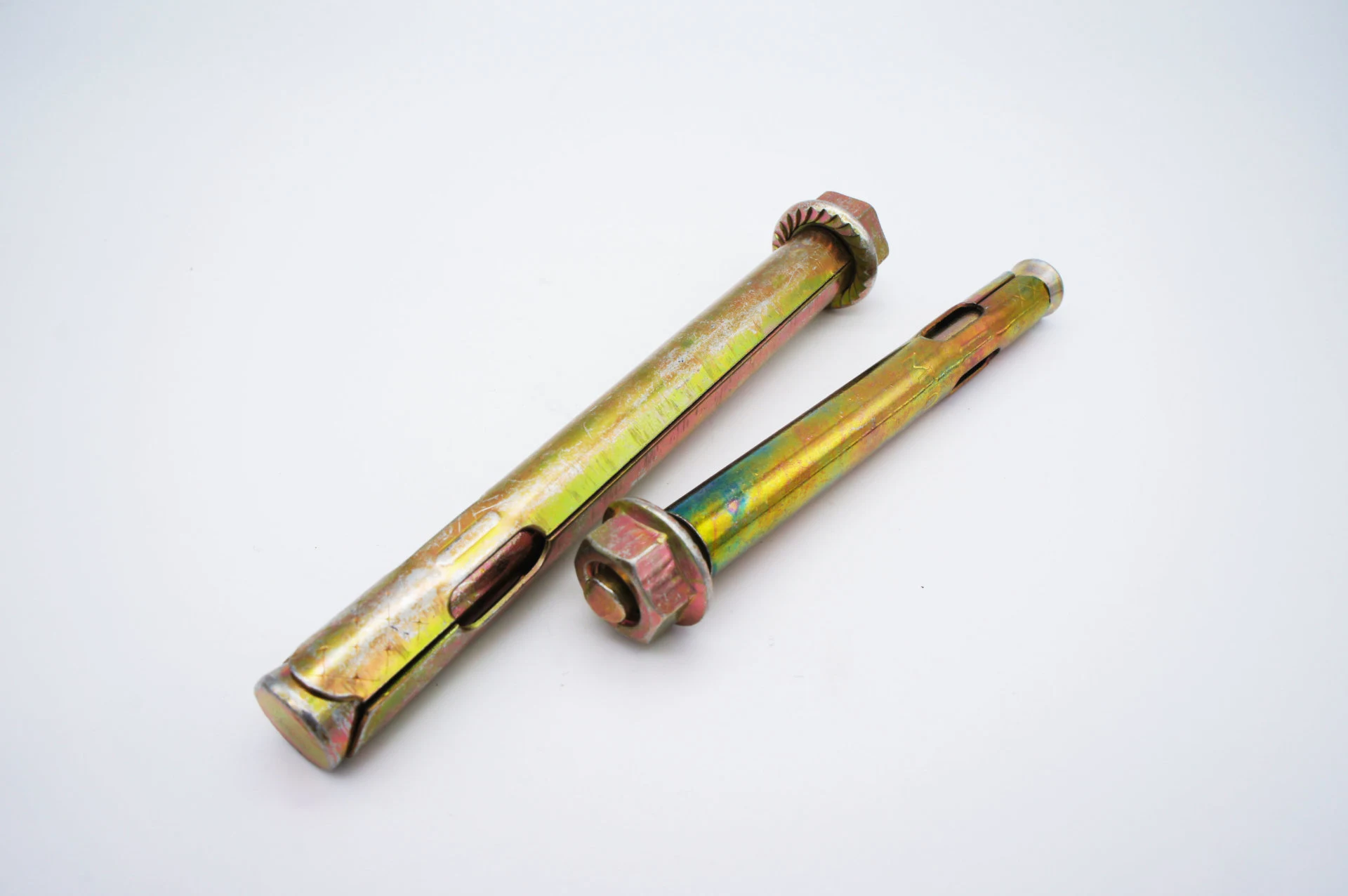

M10 M12 Sleeve Anchor Bolts Fasteners With hex bolt, Yellow Zinc

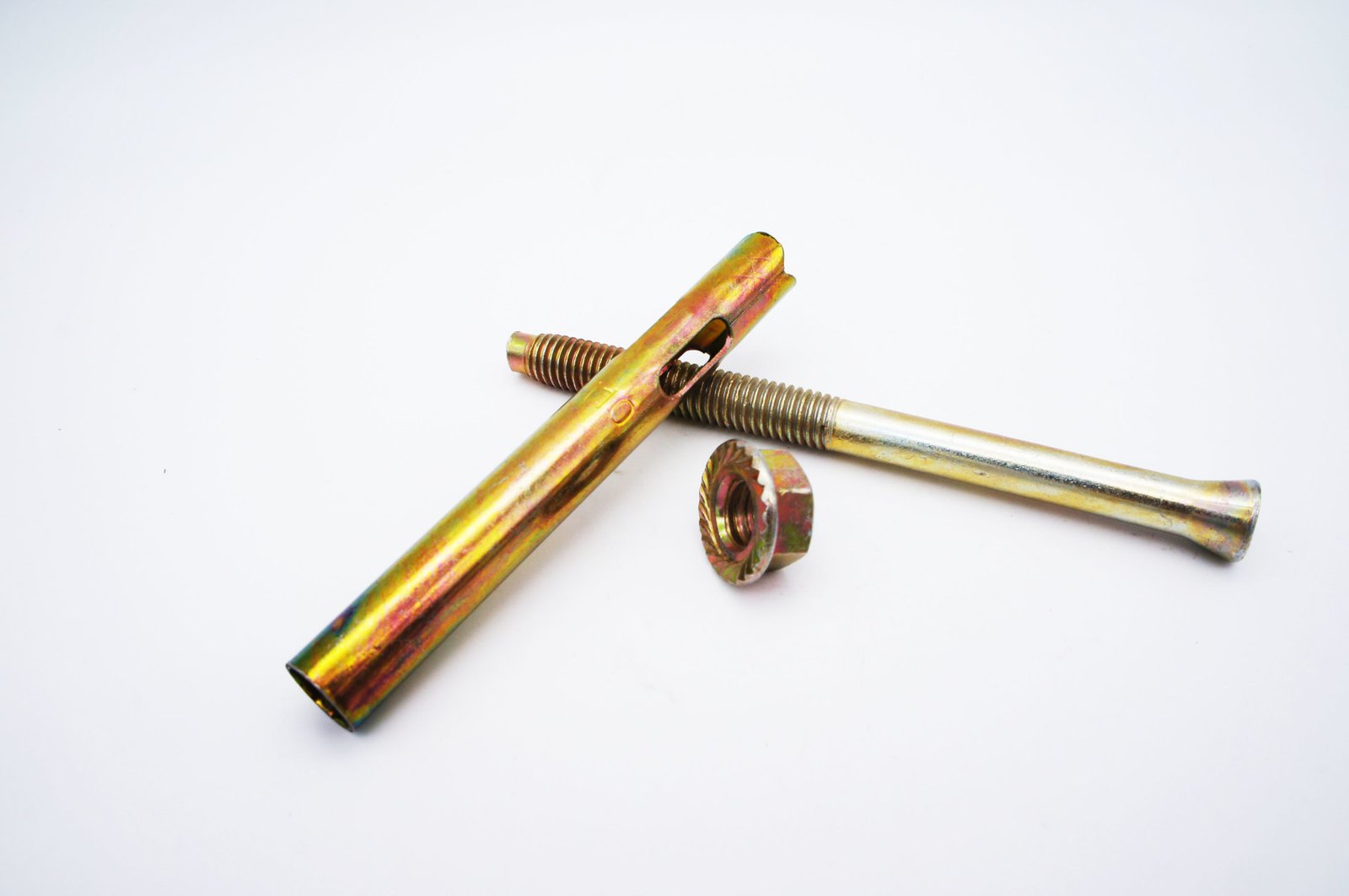

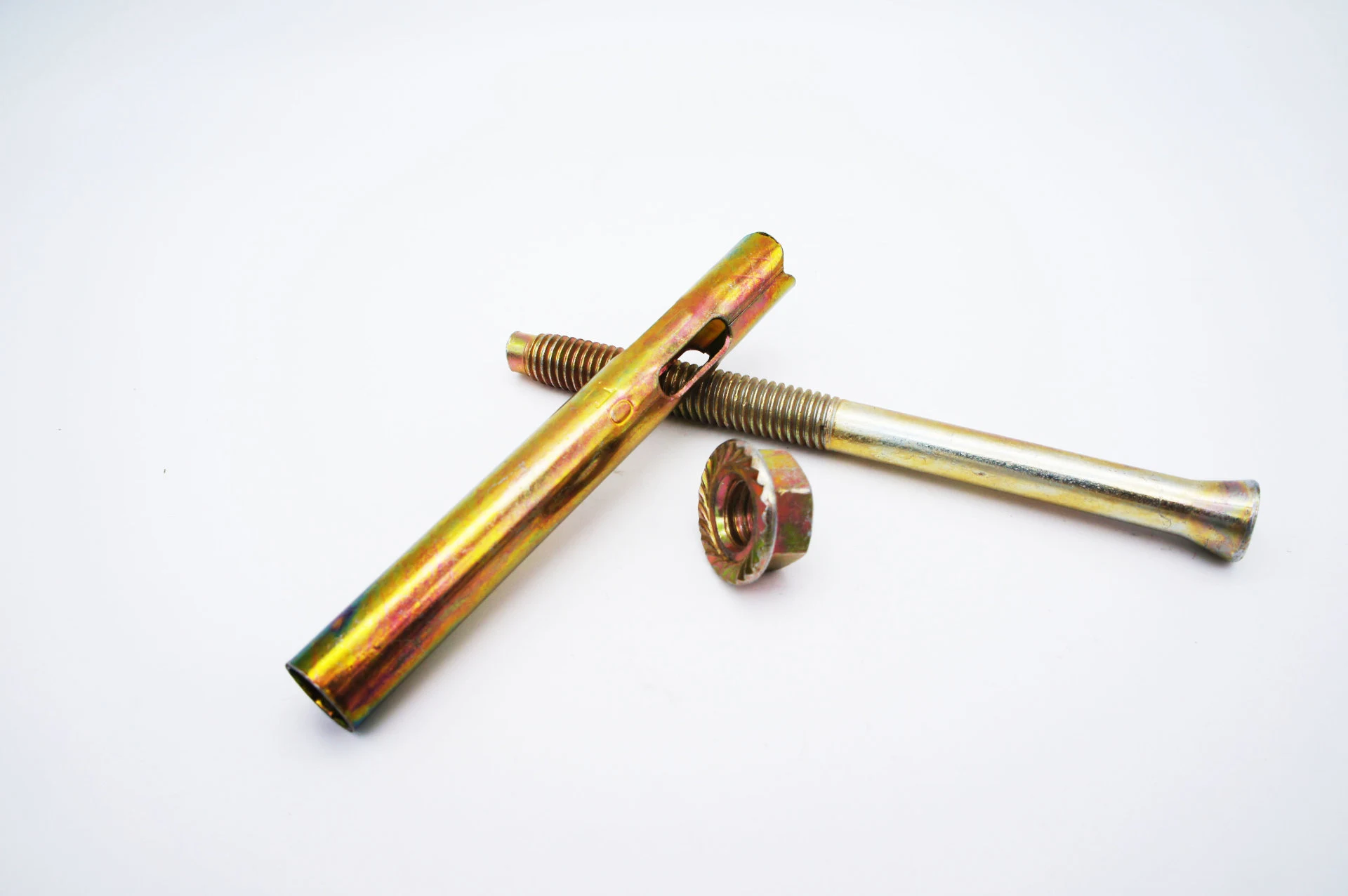

Sleeve Anchor Bolts is combined by head bolt, expansion tube, flat washer, expansion nut and hex nut. An anchor with eye bolt is used to attach objects or structures to concrete. Anchor bolts are extensively used on all types of projects, from standard buildings to dams and nuclear power plants. They can also be used to firmly affix embed plates to a concrete foundation when used with a structural steel element.
- Commodity name： M10 M12 Sleeve Anchor Bolts Fasteners With hex bolt , Yellow Zinc
- Commodity ID： 1022438084307673088
- Product Description
-
M10 M12 Sleeve Anchor Bolts Fasteners With hex bolt , Yellow Zinc
Products Description:
Sleeve Anchor Bolts is combined by head bolt, expansion tube, flat washer, expansion nut and hex nut. An anchor with eye bolt is used to attach objects or structures to concrete. Anchor bolts are extensively used on all types of projects, from standard buildings to dams and nuclear power plants. They can also be used to firmly affix embed plates to a concrete foundation when used with a structural steel element.
Specification:
Size Amount in one bag 6*45 800 8*60 400 10*90 200 12*100 100 Application
Principle Expansion of the screw fixed principle: the expansion screw fixed but the use of pull-shaped gradient to promote expansion of the friction grip force, to a fixed effect. Screw is a thread, a vertebral end. Outside the package of a tin, iron cylinders have a number of incision, thaw into the wall with them thrown into the hole, and then lock the nut, nut pull the screw, the vertebral pull into the iron cylinder, iron cylinder was up Open, so tightly fixed to the wall, generally used for fences, awnings, air conditioning and other materials in the cement, brick and other fastening. But its fixed is not very reliable, if the load has a large vibration, may occur loose, it is not recommended for the installation of ceiling fans.
Expansion bolt is the principle of expansion bolts hit the ground or wall hole, the bolt with a wrench to tighten the expansion nut, bolts go out, while the outside of the metal sleeve does not move, so the bulk of the bolt under the put The metal sleeve opens up to fill the hole, and the expansion bolt does not come out.
Ordering and Documentation
Confirm the product standard or drawing, thread and dimensions, material or property class, surface finish, quantity, packing and destination before quotation.
Required inspection, material, mechanical-property, coating and packing documents must be listed in the inquiry. Availability, lead time and commercial terms are confirmed for the specific order.
-
Key word:
- Sleeve Anchor
- Sleeve Anchor With hex bolt
- Anchor Bolts
- Fasteners
Get Quote
NOTE: Please leave your email, our professional person will contact you asap!
M10 M12 Sleeve Anchor Bolts Fasteners With hex bolt, Yellow Zinc Specifications
YONGYI supplies M10 M12 Sleeve Anchor Bolts Fasteners With hex bolt, Yellow Zinc for industrial, OEM and project purchasing. This page identifies the requested product family, standard, material, grade and finish so buyers can compare it with their drawing, bill of materials or technical specification.
Standard designations are common market references. Final dimensions, tolerances, mechanical properties, coating requirements and thread fit are confirmed in the quotation or approved drawing before production.
| Product | M10 M12 Sleeve Anchor Bolts Fasteners With hex bolt, Yellow Zinc |
|---|---|
| Category | Anchors / Sleeve Anchors |
| Referenced Standard | Confirm by drawing or purchase specification |
| Size / Thread | M10, M12 |
| Material | Material to be confirmed with the order |
| Grade / Property | Mechanical property requirement to be confirmed |
| Surface Finish | Yellow zinc plated |
| Packaging | Carton, bag, pallet or project-specific export packing after quantity and unit weight are confirmed. |
Typical Applications
- Concrete and masonry fixing after the anchor type, base material and design load are confirmed
- Equipment bases, brackets, handrails and construction assemblies
- Project supply requiring controlled dimensions, coating and matched accessories
Information Required for an Accurate Quote
- Nominal diameter, thread system, pitch and length where applicable
- Required standard, material and property class or hardness
- Surface finish, coating standard and any thickness or corrosion requirement
- Order quantity, packing method, destination and required supporting documents
Quality and Order Documentation
Depending on the agreed order and available production records, documentation may include an approved drawing, dimensional inspection, material or mechanical-property report, coating report, packing list and shipment photos. Required documents must be stated before quotation.
FAQ
| Can this product be supplied to a drawing? | Drawing-based and sample-based requirements can be reviewed. Feasibility, tolerances, tooling, MOQ and lead time are confirmed after technical review. |
|---|---|
| How should I request an alternative standard? | Send the original specification and identify any acceptable alternative. YONGYI will list confirmed compliance and any technical deviation separately. |
| Can coating and test documents be included? | Yes, when agreed before order. State the coating specification, test scope, inspection party and document format in the inquiry. |
